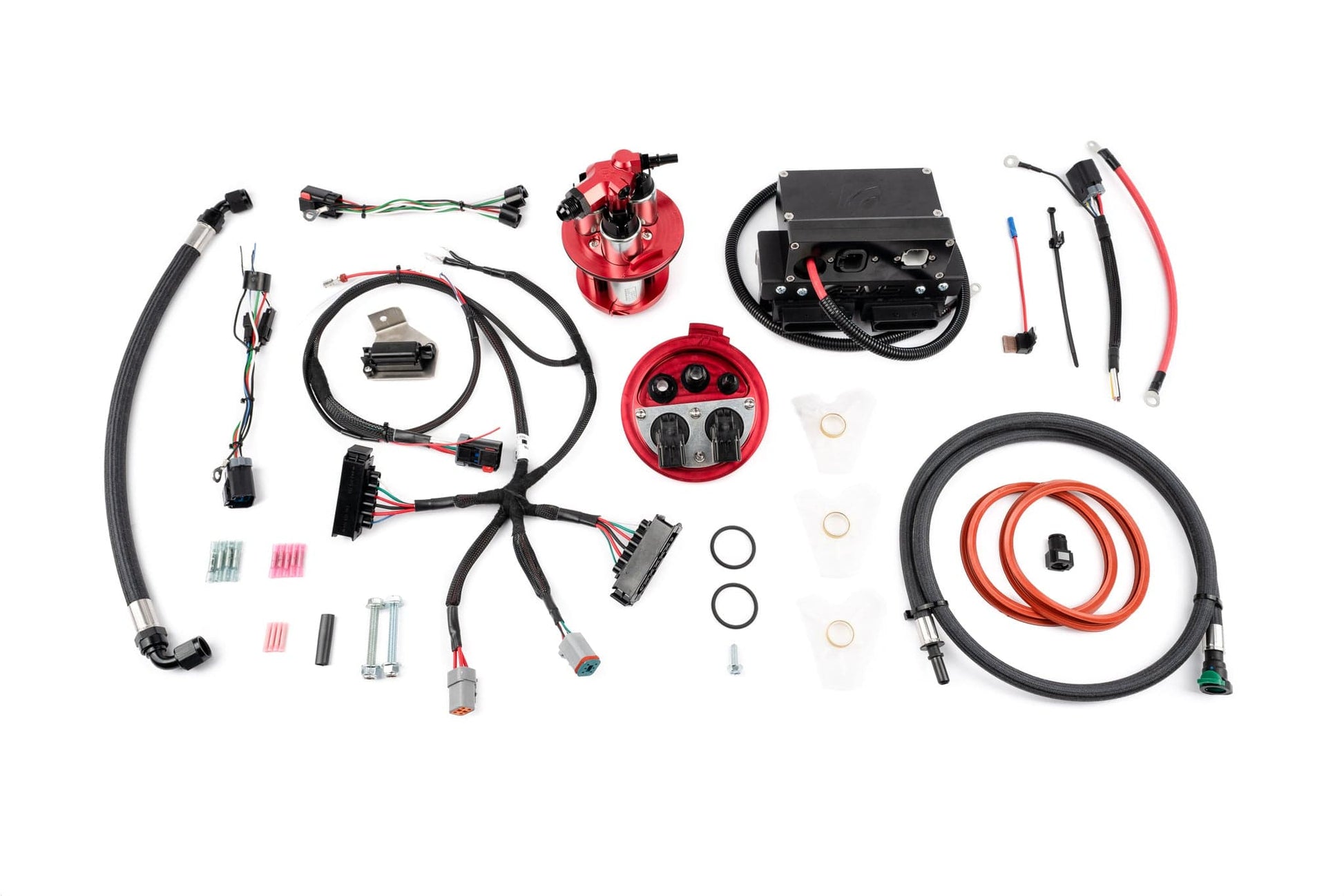

The AMS Triple Fuel Pump Kit is the ultimate fuel system upgrade for your V10, elevating your fueling output to extraordinary levels all while maintaining OEM-like fit and functionality. Supporting up to 3200 HP on gasoline and 2400 HP on e85 the full ALPHA Fuel System has been designed and expertly crafted by our AMS Snailworks® Engineering Team to raise fueling output to extraordinary levels while retaining or improving all OEM functionality. Gone are the days of inadequate syphon systems and being required to keep your fuel tank filled to a minimum of a half tank, or being forced to use an external fuel surge tank and loud external fuel pumps mounted in the engine bay. Constructed from CNC-machined, red anodized billet aluminum, the fully sealed Power Distribution Module includes IP67-rated connectors for exceptional weatherproofing of the proprietary electronics that ensure synchronized operation and balanced power distribution across all three brushless pumps. With PTFE-lined hoses for superior flexibility and fuel fume control, AN and quick connect fittings, plug-and-play wiring harnesses, and seamless integration with stock or standalone ECUs, the AMS Performance R8/Huracan Alpha Fuel System – Triple Pump Kit offers unparalleled performance and ease of assembly, making it the definitive choice for serious enthusiasts.

ENGINEERED TO BE THE BEST

AMS Performance is an engineering company first. We have built our nearly 25 year reputation as a leading motorsports aftermarket component manufacturer by creating the highest performing parts through a focused engineering approach to design. This design method allows us to include features not found in any other kits on the market, including motorsports quality plug-n-play harnesses, high-end externally corrugated, smooth bore, PTFE lined fuel lines with AN fitting connections, and CNC machined pump manifold and fuel assembly top hat. Where others may use plastic fittings, low grade rubber fuel hose, and leak prone clamps, we have put together a system that uses the highest quality materials for years of trouble free operation.

Elegant solutions were engineered and implemented across the entire Alpha Fuel System Twin Pump Kit. From the CNC machined pump assembly manifold engineered via Solidworks© Computer-Aided Design (CAD) software, down to the Plug ‘n Play electrical harnesses designed to make installation a breeze, the Triple Pump Kit is a testament to engineering excellence. One of the most significant achievements of our engineering team has been retaining a functional siphon system to keep both sides of the fuel system filled with fuel, while still being able to provide substantially increased fuel flow to the engine over the OEM system. This is accomplished by completely redesigning the system from the ground up with a proprietary siphon routing solution. This allows us to not only keep the auxiliary side of the tank filled, but to keep the pump assembly itself filled with fuel – directly. This allows the Alpha Fuel System to not only feed the three brushless pumps with fuel when below a half tank full, but to allow your fuel gauge needle to read as accurately as OEM.

Giving extra attention to the details is what sets us apart from the competition, which is why we choose to include premade PnP wiring harnesses, AN and other quick connect fuel fittings, and IP67 rated electrical connectors wherever possible. Our team has also created a 40 page, full-color, industry-leading instruction guide helping make our kit the simplest to install on the market.

UNLIMITED POWER

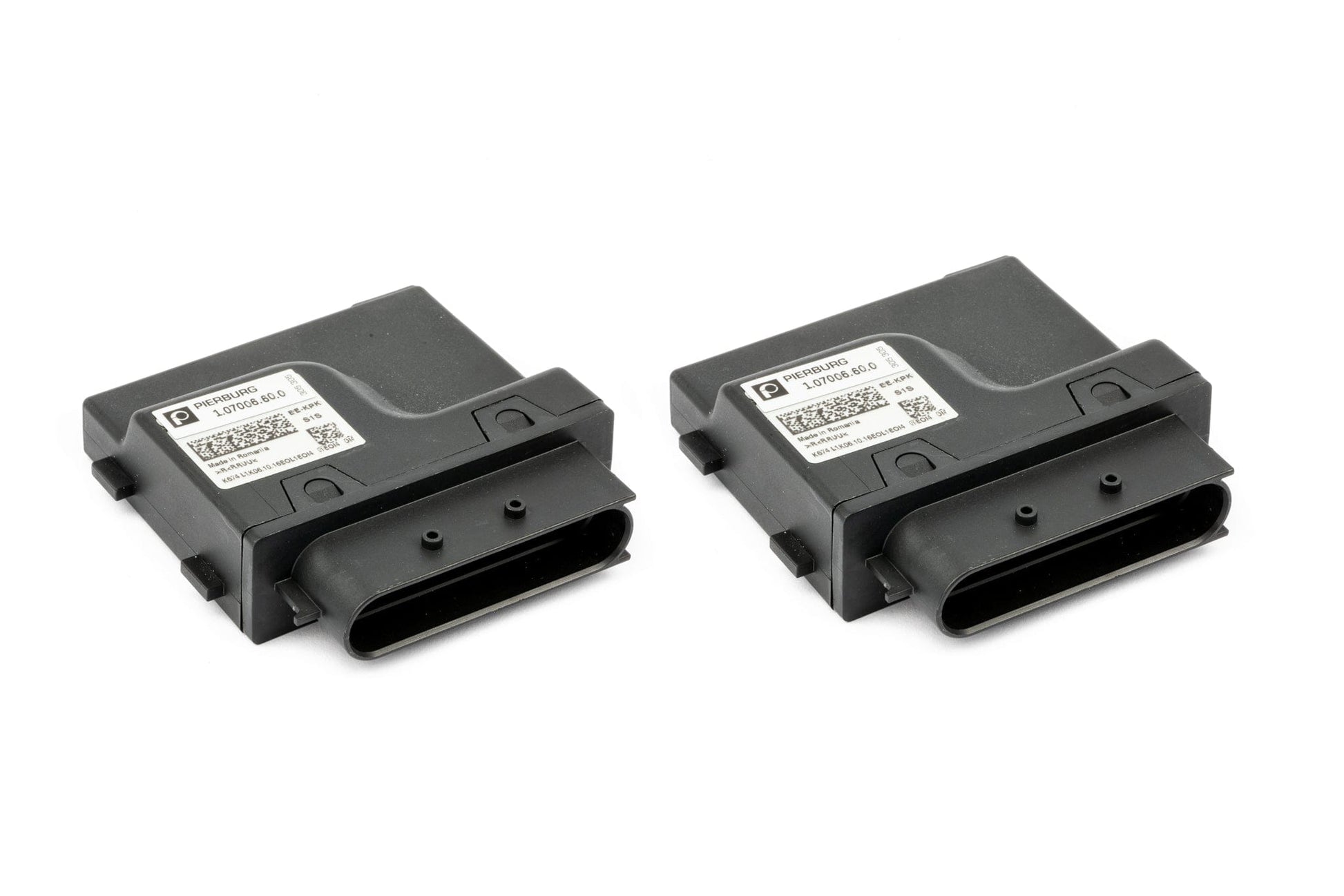

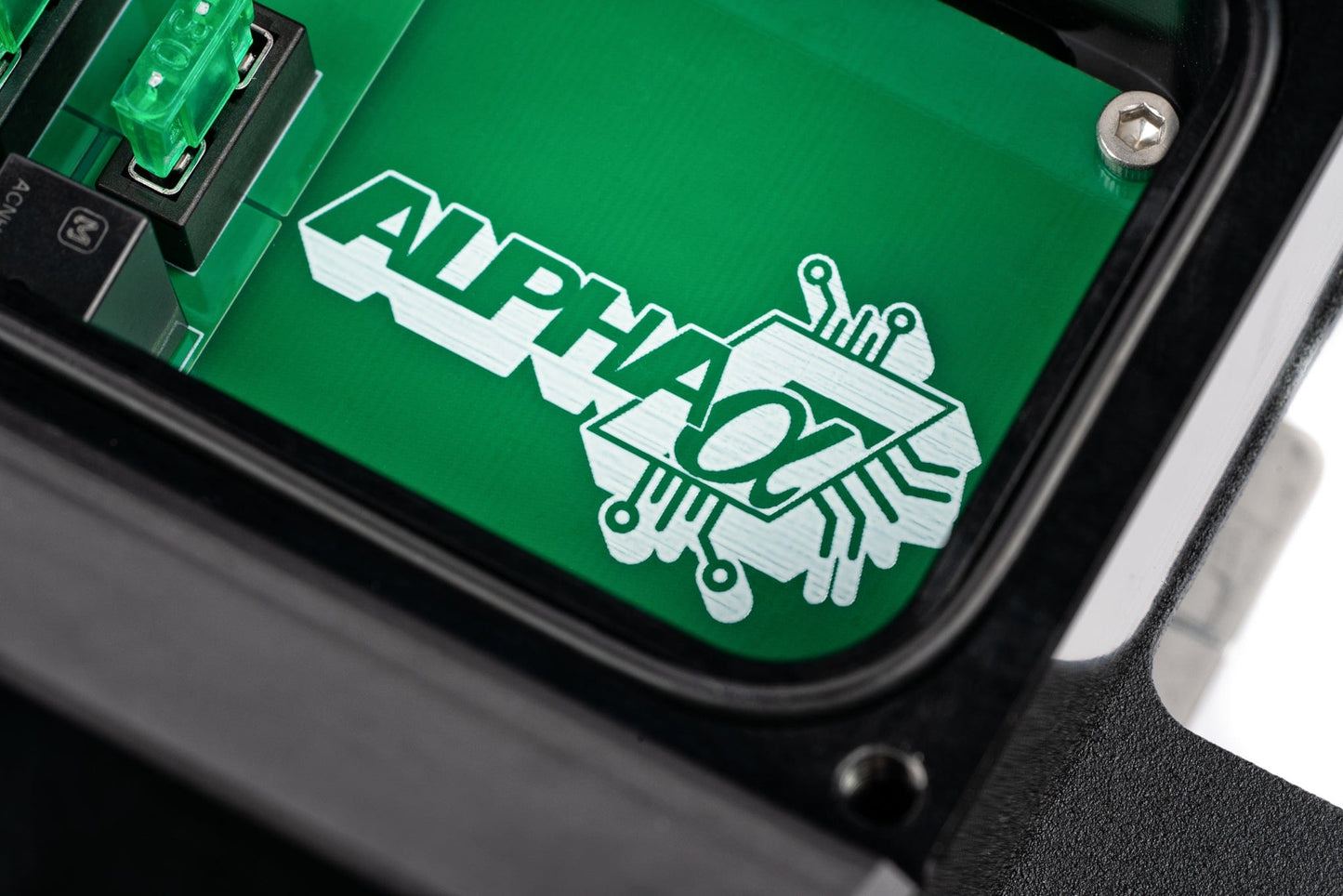

The AMS Triple Pump Kit features a Power Distribution Module engineered to evenly distribute power among the three brushless fuel pumps. Our proprietary electronics ensure precise synchronization of the fuel pumps, delivering the exact amount of fuel to the engine at the optimal moment. Additionally, the kit includes two Pierburg pump control units to complement the third OEM controller and a dedicated 6 AWG power wire draws power directly from the alternator, ensuring clean and uninterrupted voltage is delivered to the pumps. The CNC-machined billet aluminum enclosure is fully sealed and equipped with IP67-rated bulkhead connectors for superior weatherproofing, giving you peace of mind in all race conditions.

DELIVERING A COMPLETE SOLUTION WITH THE ALPHA FUEL SYSTEM

The Alpha Fuel System has been developed by our talented AMS Snailworks® Engineering Team as a complete system, but with a modular approach. We know that many enthusiasts will want to do custom fuel system builds to their own specifications, so we’ve broken down the complete vehicle fuel system to four separate subcomponents – the Twin or Triple Pump Kit at the fuel tank, the Fuel Pressure Regulator and Fuel Line Kit in the engine bay, the Fuel Rail Kit on the intake manifold, and an optional Flex Fuel Kit Add-on for those wanting to run ethanol fuels. While these four main subcomponents are available to purchase separately, they have all been designed to fit together seamlessly as a complete system.

The benefit of developing a system in this manner is that we can reimagine how the system fits and works together to optimize vehicle-wide systems to improve fuel flow, drivability, and ease-of-use. There are a number of extremely restrictive components within the factory fuel system which our reimagined Alpha Fuel System reroutes, removes, or replaces to vastly increase fuel throughput. Another of the key features of the Alpha Fuel System is the ability to have OEM-like siphon system functionality, without the highly restrictive fuel flow of the OEM system. Because we have been able to re-engineer the entire fuel system as a complete unit, we can provide fuel to both sides of the saddle tank equally, keeping the fuel pump assembly full of fuel at all times. Where other builder’s kits use impractical and potentially dangerous external surge tanks, or can’t be driven below half a tank without fuel starving, the Alpha Fuel System solves these issues by way of our advanced engineering.

PRODUCT NOTES

• Spyder fitment is possible but requires custom mounting of power distribution module.

• The subcomponents of the R8/Huracan Alpha Fuel System are all designed to be used in conjunction with one another. Some custom fitting will be necessary if you are not using the complete Alpha Fuel System.

• Stock ECU compatibility relies heavily upon the software being used to calibrate it. We can only guarantee functionality with our custom stock ECU tuning service found in our Alpha packages. Contact your tuner directly for compatibly confirmation.

WARNING: By purchasing this fuel system component you confirm that you have read and understand the following: WARNING/DANGER: SERIOUS RISK OF FIRE, EXPLOSION, BODILY INJURY INCLUDING RESULTING DEATH, AND ENGINE, VEHICLE, AND OTHER PROPERTY DAMAGE. THIS FLEX FUEL KIT MUST BE INSTALLED AND REMOVED ONLY BY A QUALIFIED MOTOR SPORTS TECHNICIAN. THE TECHNICIAN ALSO MUST BE TRAINED IN HOW TO INSTALL AND REMOVE THIS KIT FROM THIS SPECIFIC VEHICLE. THE TECHNICIAN MUST NOT PARTICIPATE IN ANY ACTIVITY THAT WOULD BE CONSIDERED A CATALYST FOR IGNITION WHILE INSTALLING OR REMOVING THIS KIT AND MUST READ THE INSTALLATION INSTRUCTIONS BEFORE INSTALLATION OR REMOVAL.

• TRIPLE PUMP SYSTEM CAPABLE OF SUPPORTING 3200+ HP OF FUEL DELIVERY ON GASOLINE AND 2400+ HP ON E85

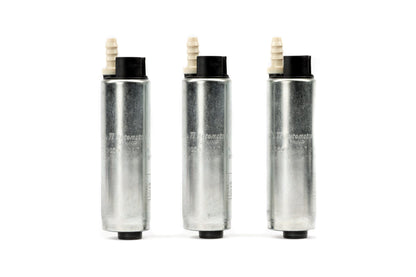

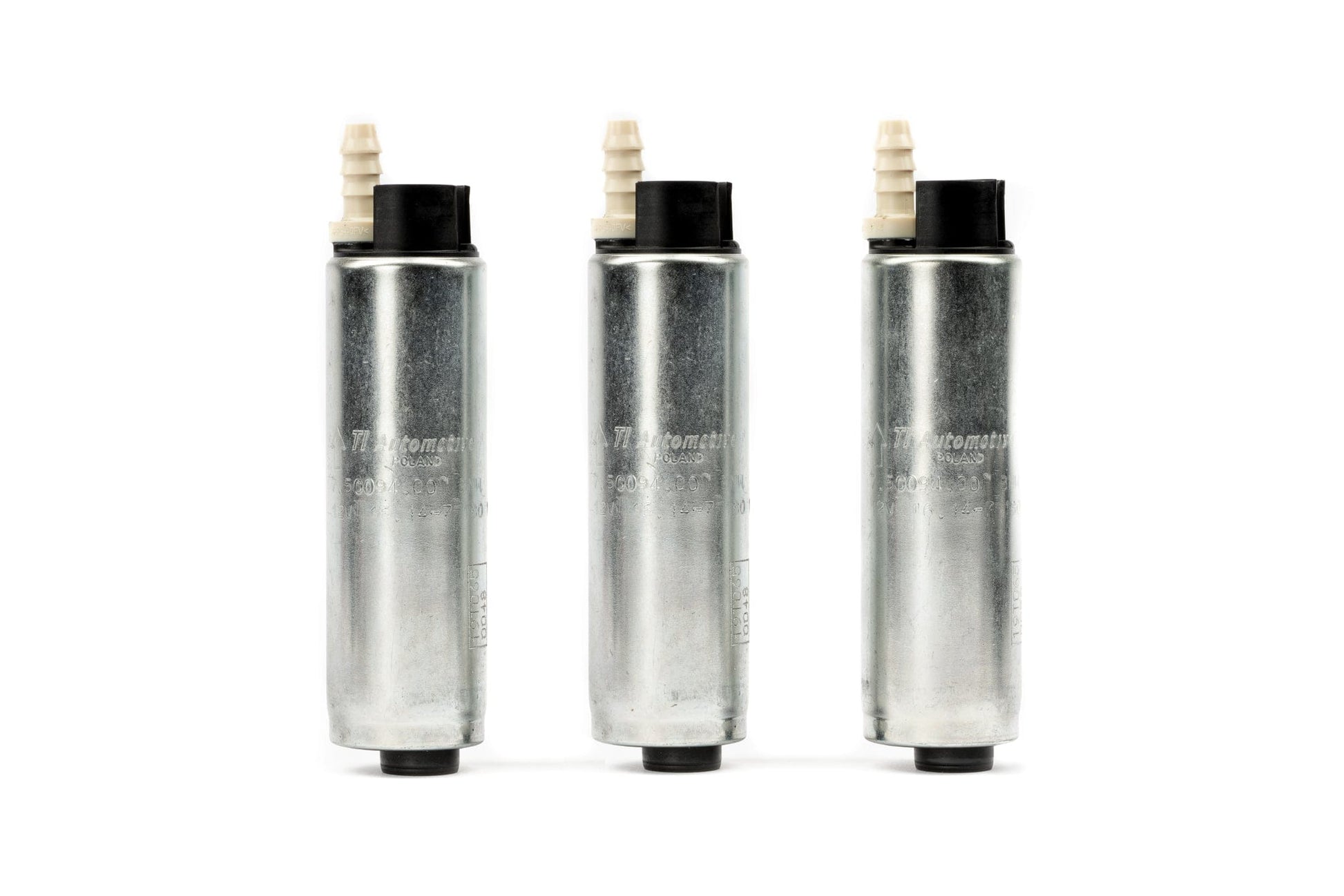

• THREE BRUSHLESS FUEL PUMPS PROVIDE QUIET OPERATION AND EXTREME FLOW CAPABILITY

• PROPRIETARY ELECTRONICS TO EVENLY DISTRIBUTE POWER AND SYNCHRONIZE ALL THREE PUMPS

• ALL MATERIALS AND COMPONENTS ARE FULLY ETHANOL AND METHANOL COMPATIBLE

• FULLY INTEGRATES WITH STOCK ECU OR STANDALONE ECU SOFTWARE SUCH AS MOTEC M142 FOR A SEAMLESS SOLUTION

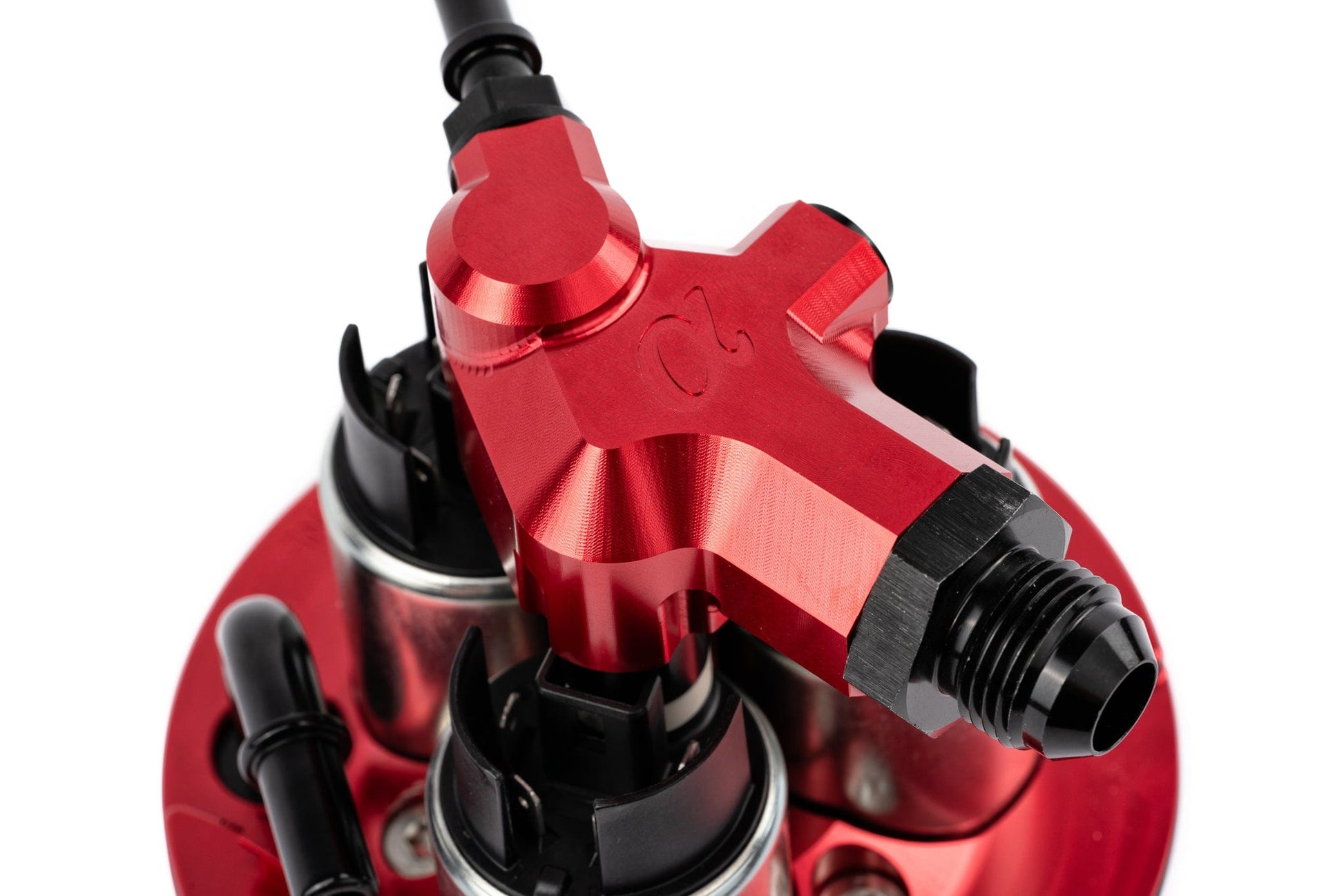

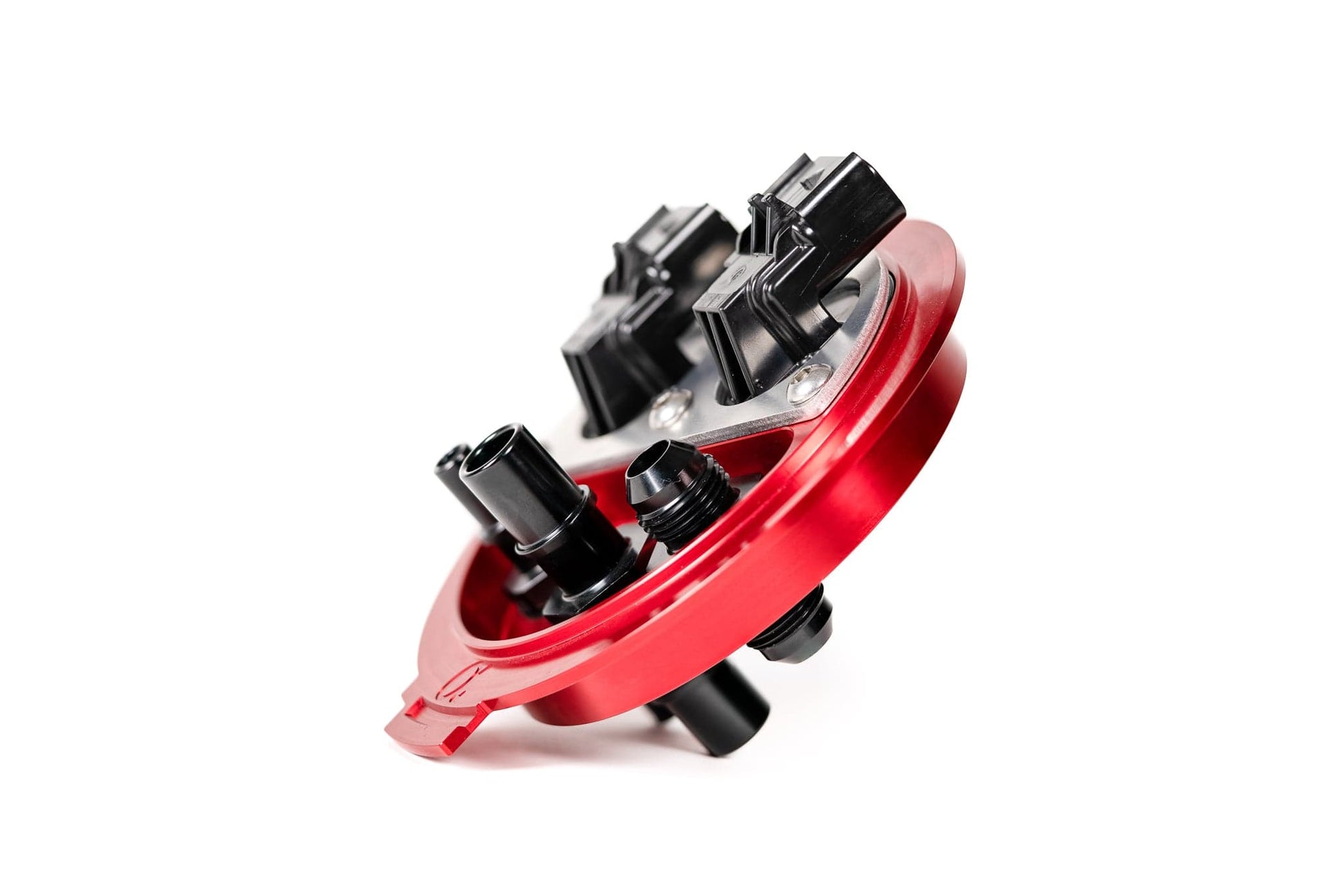

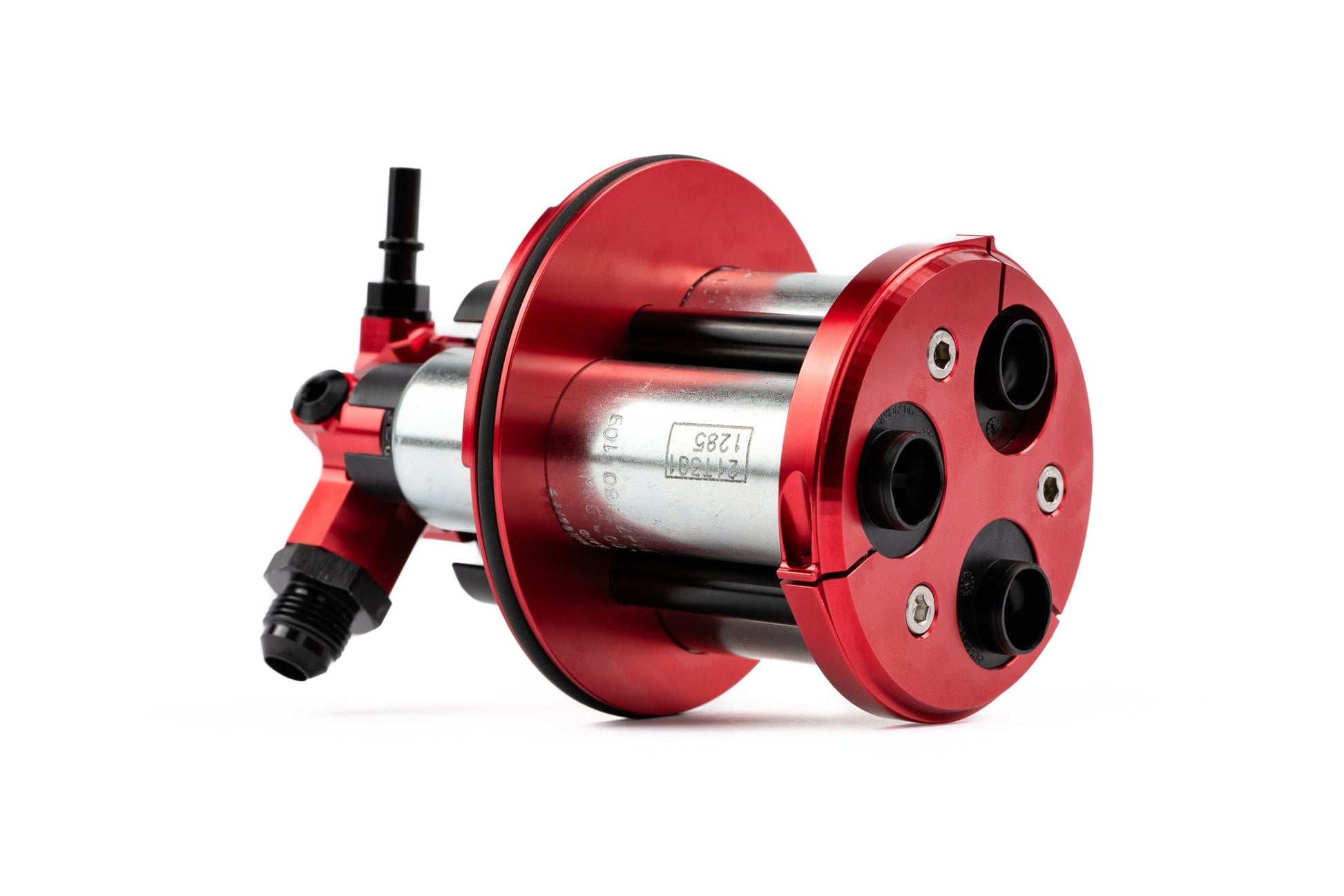

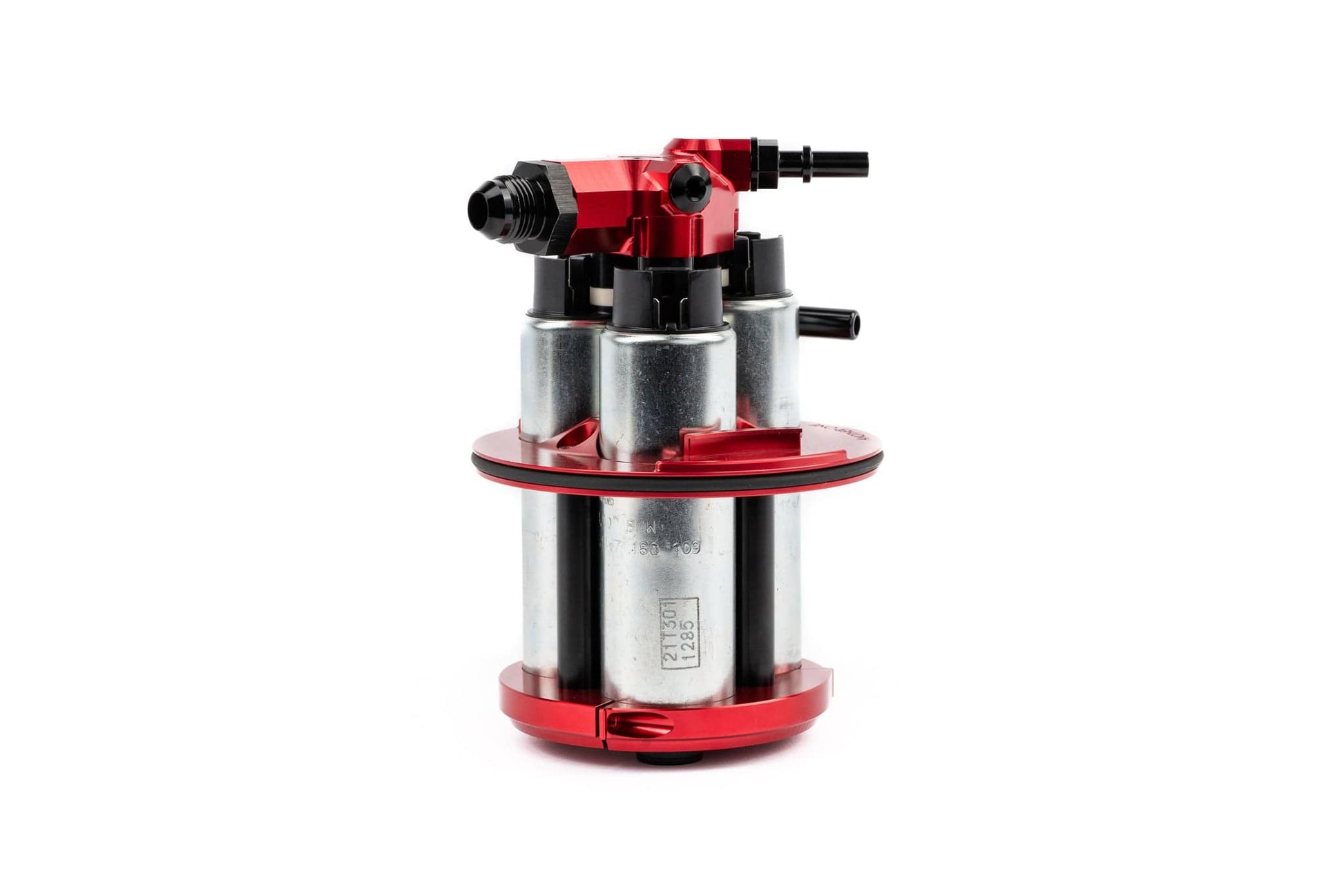

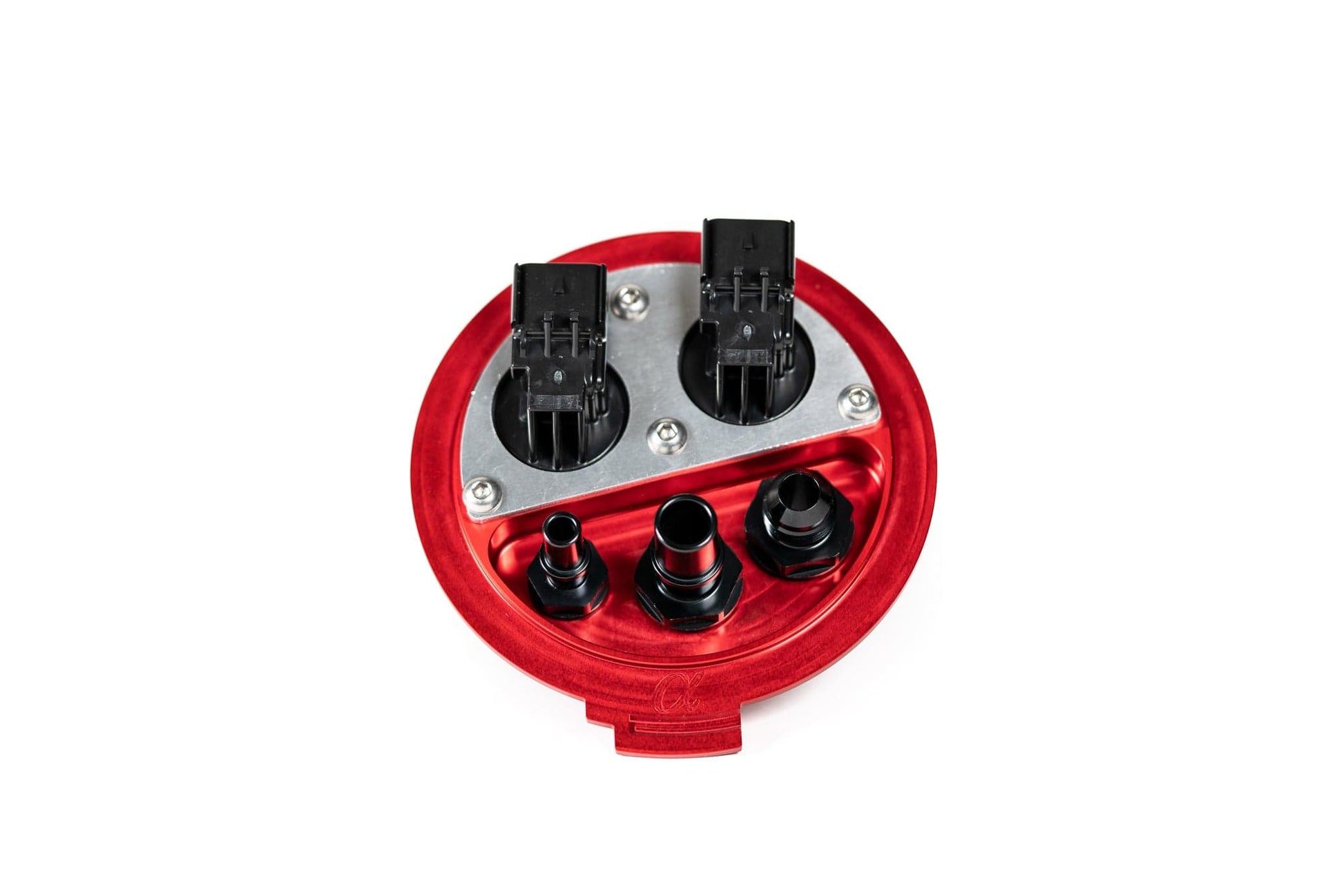

• CNC MACHINED RED ANODIZED BILLET ALUMINUM FUEL PUMP ASSEMBLY, PUMP OUTLET MANIFOLD, AND TOP HAT

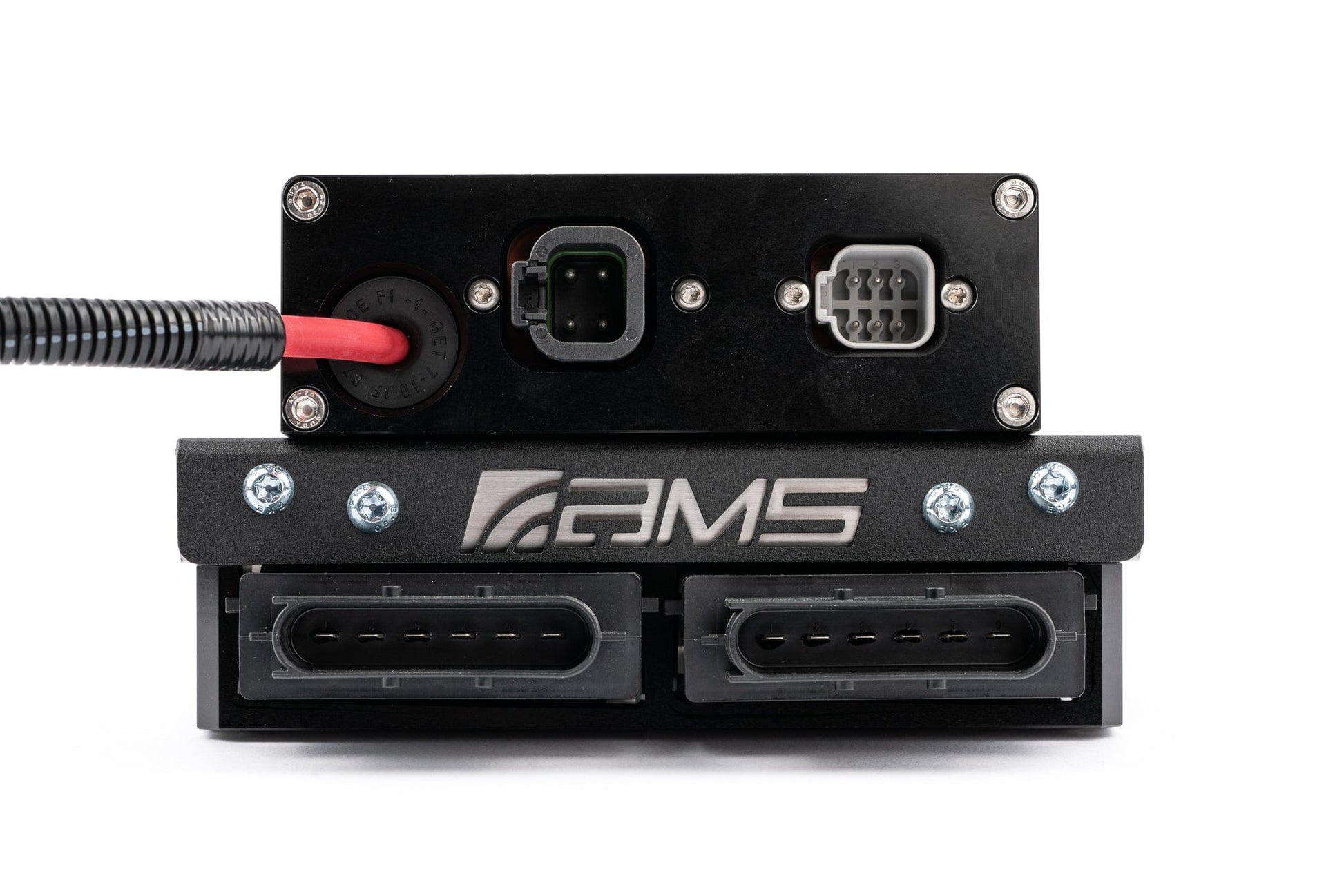

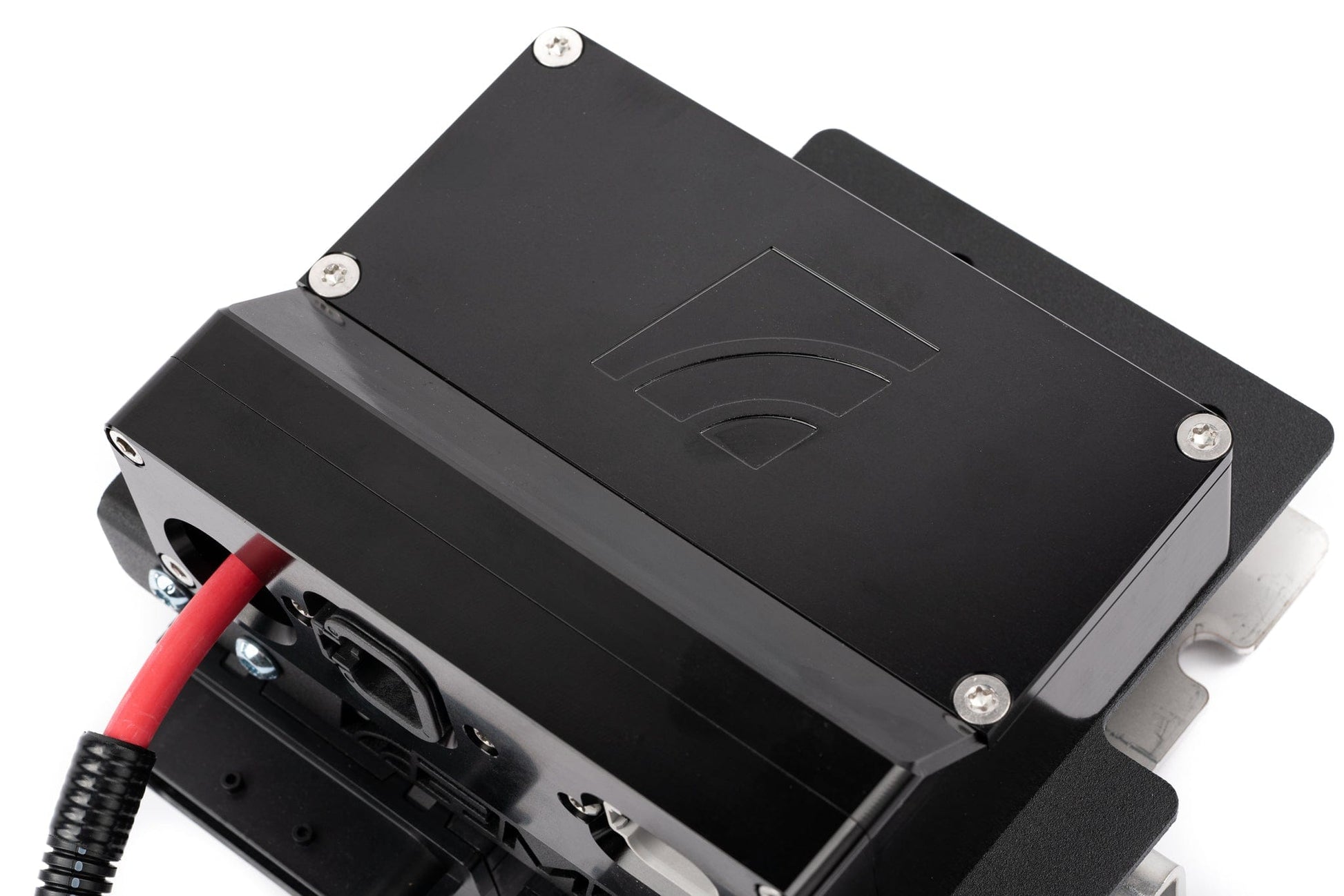

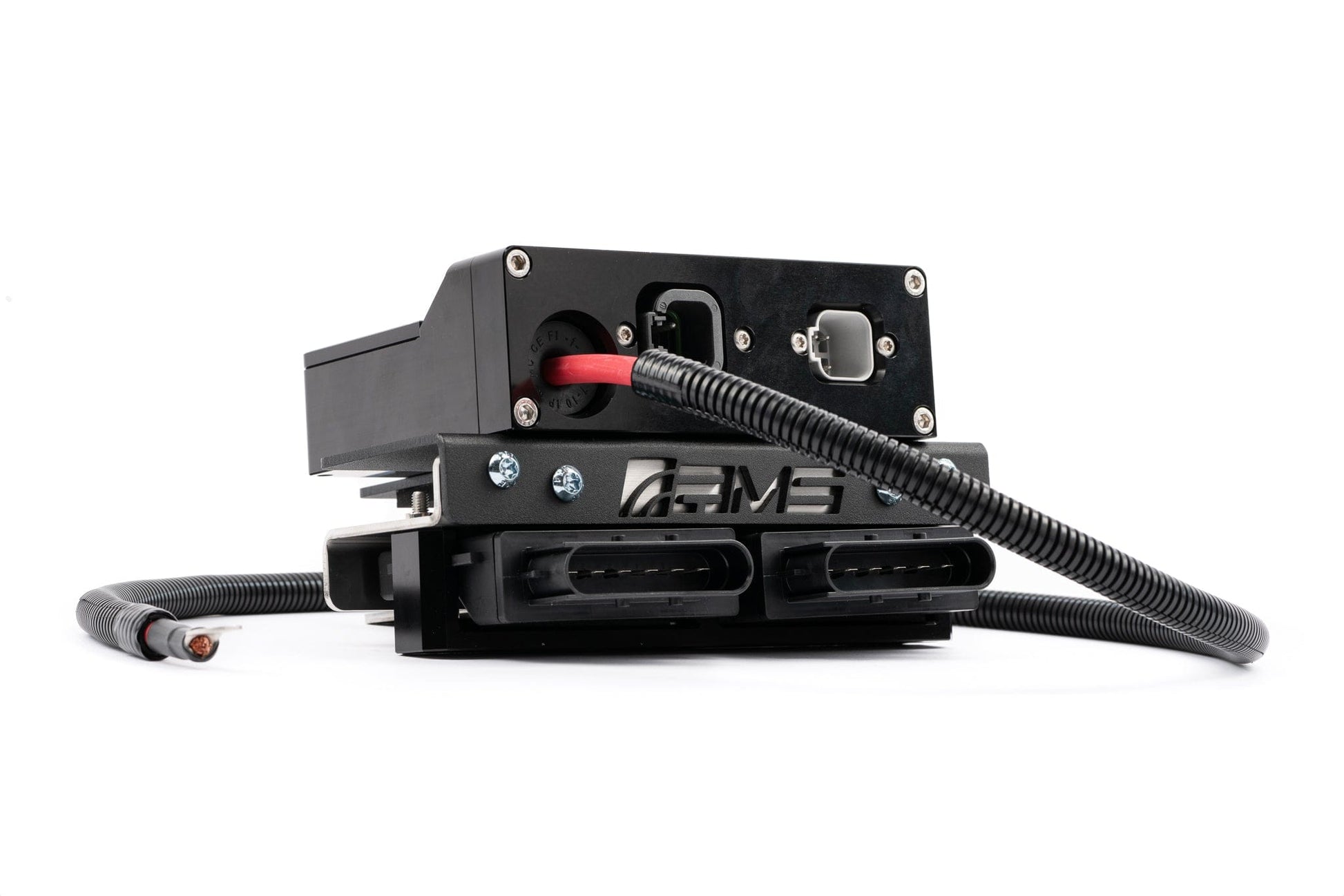

• FULLY SEALED BILLET ALUMINUM POWER DISTRIBUTION MODULE WITH IP67 RATED BULKHEAD CONNECTORS

• UTILIZES EXTERNALLY CORRUGATED, SMOOTH BORE, PTFE LINED HOSE FOR KINK-FREE FLEXIBILITY, EXCELLENT FLOW, AND FUEL FUME CONTROL

• AN FITTINGS, PLUG ‘N PLAY HARNESSES, AND AN INDUSTRY LEADING INSTALLATION GUIDE MAKES INSTALL A SNAP

• SIPHON SYSTEM FUNCTIONALITY RETAINED TO ALLOW FOR OEM-LIKE LOW FUEL LEVEL USAGE AND MONITORING

• 2017-Current Audi R8 Gen 2 (Incl. Plus & Performance models, Excl. Spyder variants)
• 2015-Current Lamborghini Huracan (Incl. Performante, Evo, & STO models, Excl. Spyder variants)
