Description

034Motorsport is pleased to present our X34 Carbon Fiber Audi 8S TTRS and 8V.5 RS3 Closed-Top Intake Bundle for the 2.5 TFSI EVO! This bundle is a combination of our X34 Carbon Fiber Closed-Top Cold Air Intake and the X34 Carbon Fiber Fresh Air Duct and Lower Airbox packaged together.

This intake offers horsepower and torque gains throughout the powerband, with peak gains of up to 12 crank horsepower and 11 ft-lbs of torque on stock turbo tunes.

034Motorsport engineers worked hard to develop a complete cold air intake solution for the TTRS and RS3 that yields horsepower and torque gains over the well-designed factory airbox, ultimately resulting in this beautifully-manufactured Carbon Fiber Closed-Top Cold Air Intake System.

Meets regulations in countries that do not permit exposed air filter elements.

034Motorsport engineers first created a CFD-optimized carbon fiber intake tube, which is a direct, high-performance replacement for the plastic factory accordion hose. Using CAD software and 3D scanning technology, 034Motorsport was able to optimize the cross-sectional area of the intake tube while being mindful of space constraints. The resulting part is a functional work of art - maximizing performance given the factory space constraints and featuring smooth transitions that ensure optimal airflow to the turbo inlet.

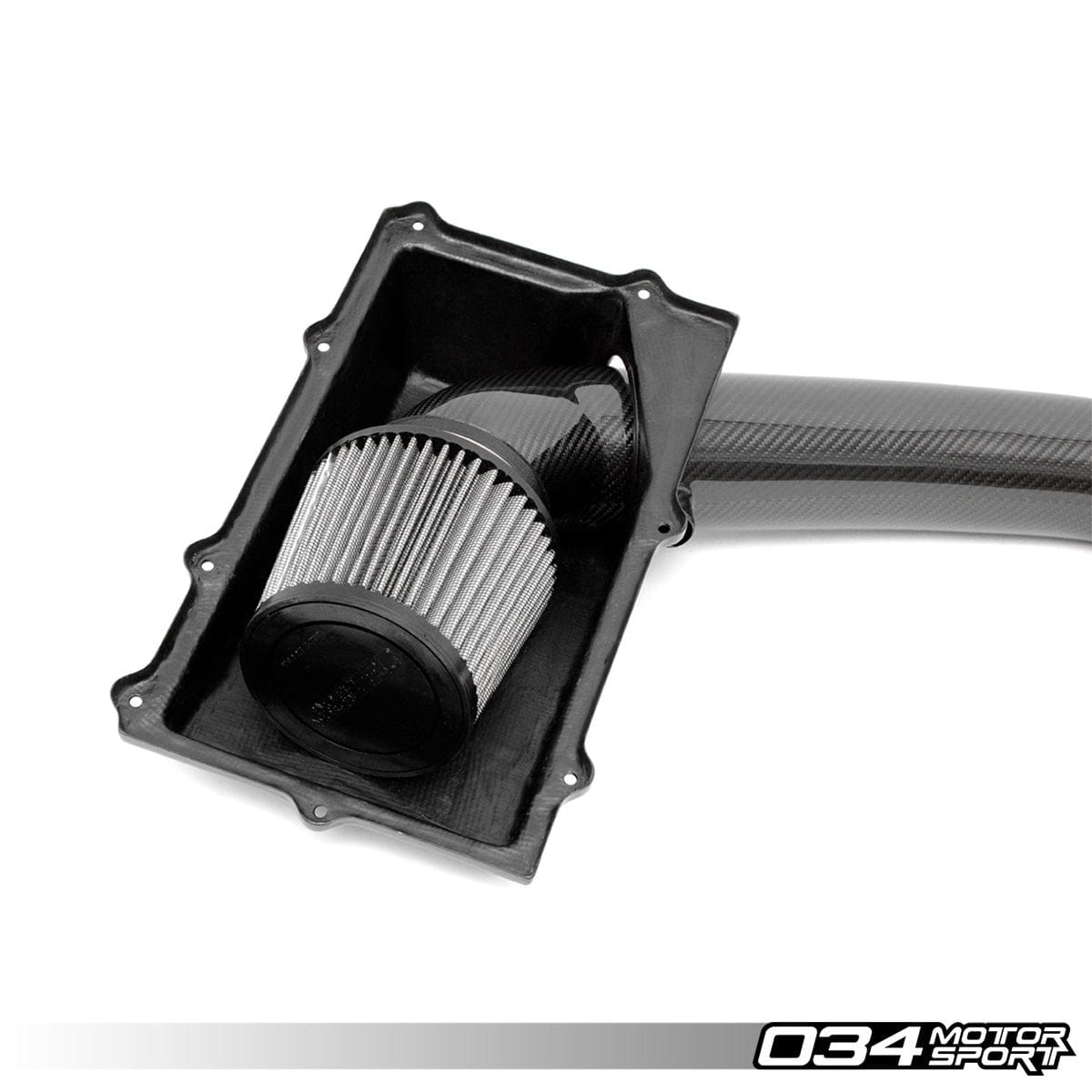

To ensure that the 034Motorsport X34 Closed-Top Cold Air Intake System draws in cool, dense air, the system includes a carbon fiber upper airbox, to replace the factory part, and also a stainless steel heat shield to block direct radiant heat from saturating the intake tube. The upper carbon fiber airbox bolts to the factory lower airbox, allowing the high-flow conical filter to breathe cold air from the factory inlet duct before the radiator. The stainless steel heat shield bolts to the stock intake tube mounting point and to the back of the head, preventing the high temperatures from the exhaust header and turbo from radiating directly at the intake tube. Both parts work together to minimize pre-turbo intake air temperature.

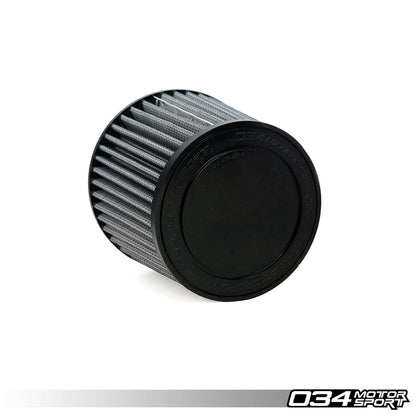

The 034Motorsport Carbon Fiber Closed-Top Cold Air Intake system houses a high-flow conical air filter with double-layer pleated cotton filtration medium. This air filter design offers increased flow through an enlarged filtration surface, while ensuring superior filtration.

034Motorsport carefully selected the carbon fiber weave of the intake tube and upper airbox to match the factory carbon fiber engine trim found in the Audi TTRS & RS3 2.5 TFSI engine bay. The 034Motorsport Audi TTRS & RS3 Closed-Top Cold Air Intake System was designed to fit like a factory part, and mates directly to the factory mounting provisions to provide an OEM+ look.

Fitted Photo(s)

X34 Carbon Fiber fresh air duct and lower airbox pressure drop improvements

Pressure Drop is the difference in ambient air pressure and the air pressure measured at the turbo inlet across the engine's rpm range. The higher the pressure drop at any given rpm, the more restrictive the intake system is, reducing airflow.

Dyno-Verified Wheel Horsepower & Torque Gains

034Motorsport's engineering and development efforts were validated on multiple vehicles using our Mustang AWD Dynamometer to ensure that the 034Motorsport Audi TTRS & RS3 Cold Air Intake System provided substantial increases in horsepower and torque on both stock turbo vehicles and ones with upgraded turbo kits alike.

Peak wheel horsepower & torque with Stage 2 E85

• Stock Intake: 456 WHP / 430 WTQ

• 034 X34 Intake: 466 WHP / 441 WTQ

• Peak Gains: 12 WHP @6,780 RPM / 11 WTQ @4,125 RPM

Product features & details

• Fits both right hand drive and left hand drive configurations

• Meets regulations in countries that do not allow exposed air filters

• High-quality carbon fiber construction

• Carbon fiber airbox top blister provides clearance for air filter without engine bay bulk

• High gloss epoxy finish

• OEM+ fit a appearance

• Dyno-proven horsepower and torque gains

• Increased engine and induction sounds

• Quieter than similar open-top intakes

• Improved throttle response

• Large-diameter CFD-optimized one piece air intake tube

• Improved airflow over factory airbox and intake tube

• Reduced Intake Air Temperature

• High performance pleated cotton air filter

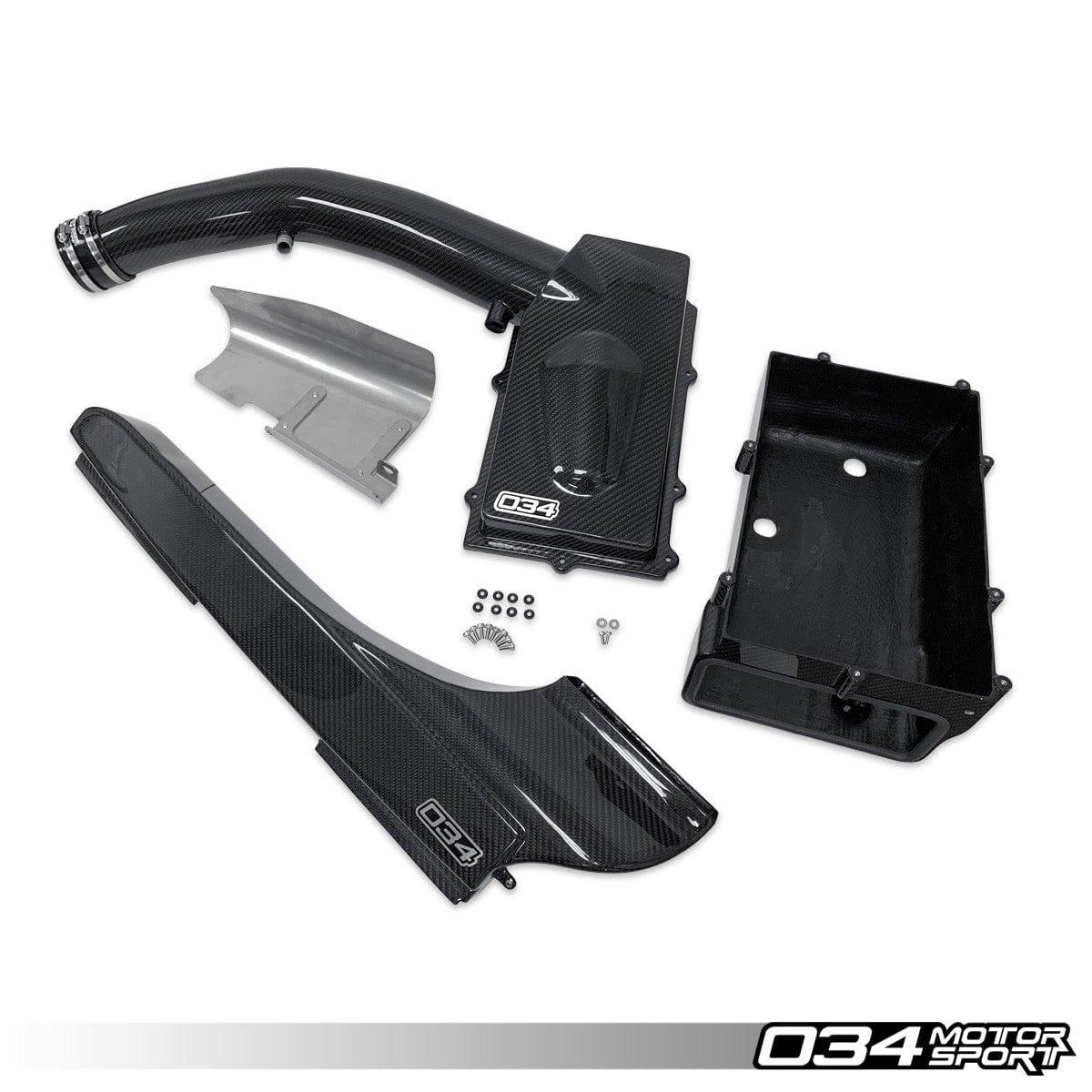

What's included:

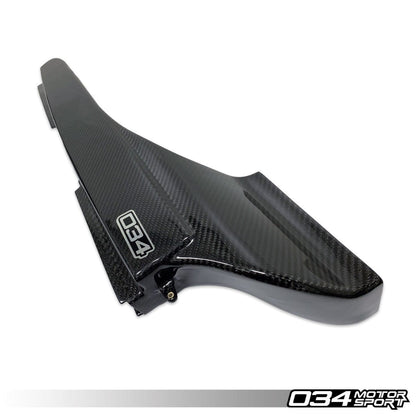

• X34 Carbon Fiber Audi TT RS & RS3 Fresh Air Duct

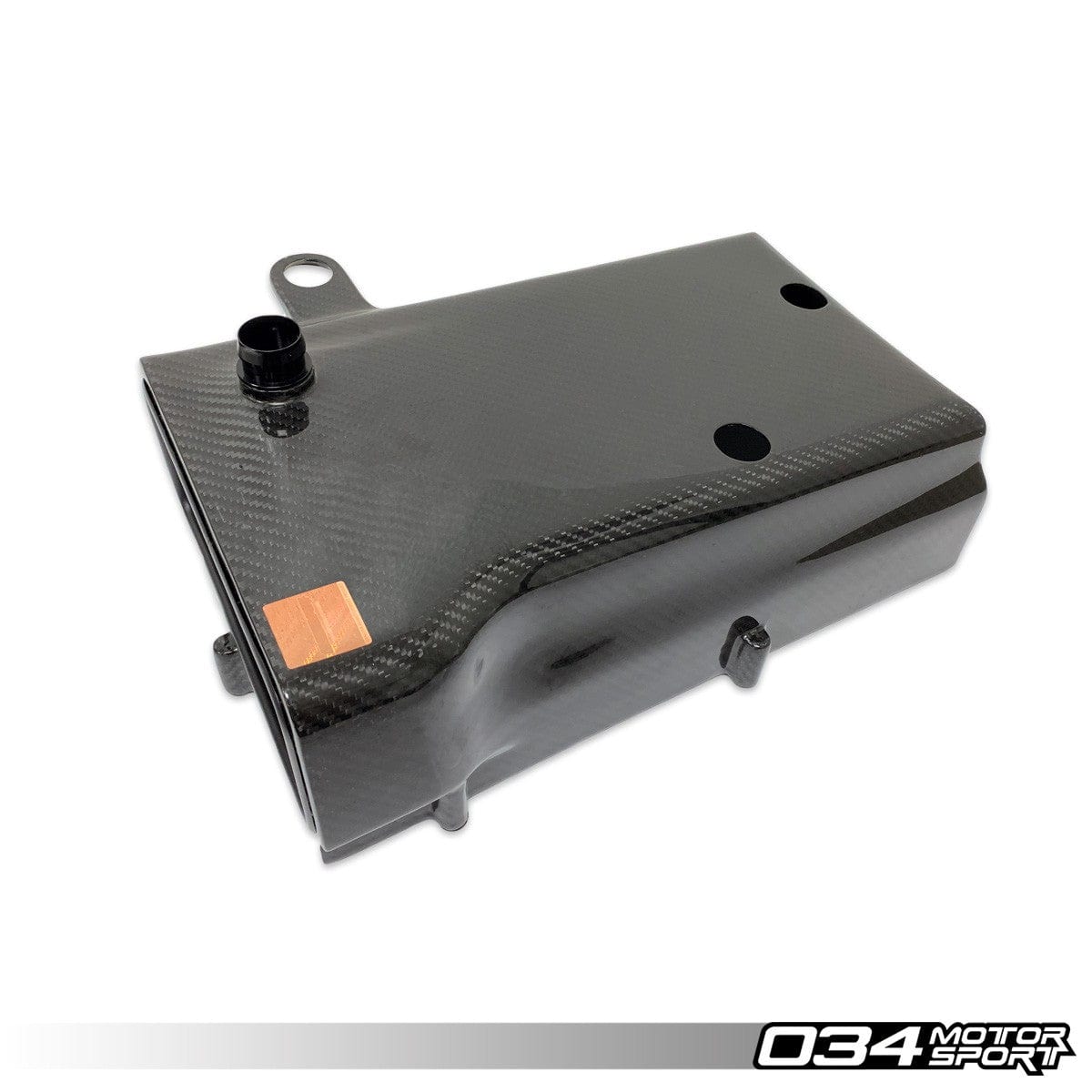

• X34 Carbon Fiber Audi TT RS & RS3 Lower Airbox

• X34 Carbon Fiber Audi TT RS & RS3 Air Intake Tube

• X34 Carbon Fiber Audi TT RS & RS3 Closed-Top Upper Airbox

• 034Motorsport Double-Layer Pleated Air Filter

• 034Motorsport Stainless Steel Heat Shield

• 034Motorsport Silicone Coupler

• Installation Hardware

Dyno Graph(s) (Click to Enlarge)

Compatible Vehicles

• Audi RS3 8V.5 MQB 2.5 TFSI EVO DAZA 2017 - 2018
• Audi TTRS 8S MQB 2.5 TFSI EVO DAZA 2018

Please Note: Will not fit 2019+ models.

Warranty

All 034Motorsport products are covered by our industry-leading 1 Year Warranty against defects in materials or workmanship. The 1 Year Warranty does not cover natural discolouration or cosmetic imperfections on carbon fiber finishes which occur over time.

Manufactured by

034Motorsport

Part Number

 034-108-1030
