Description

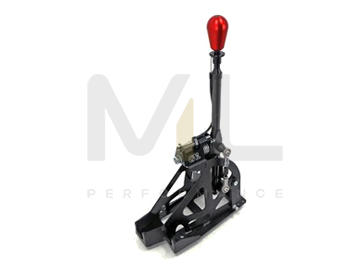

CAE Ultra Shifter for the Suzuki Swift NZ (ZC 32s) and RZ/AZ, finished in black anodised aluminium – optimised for motorsports.

Please Note:

Shifter completely assembled, all screws and small parts.

Features

• Short and super-precise shifting travel, exclusively H-pattern

• The clutch system remains in its original form.

• Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel.

• The shift pattern is confined to approx. 80 x 80 mm.

• Activation of the reverse gear lock via cable reel from the shift lever. An accidental changing to the reverse gear is impossible. The reverse gear is unlocked by pulling up the sliding collar on the shift lever.

• Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3 mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed blank for an optimal finish.

• Problem-free shifting of gears under stress or in curves.

• Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down.

• Right/left stops and reverse gear stop adjustable separately.

• Simple installation through complete conversion kit: All systems are delivered with all small parts, fastening material and detailed installation instructions.

• Shifters is intended for vehicles with interior/centre console and make use of the mounting points and cables of the original shift lever

• Center console himself has not to be modified, just the cover frame.

• Shift knob free selectable in different versions/ Colors

Specifications

• Total height: approx. 480 mm

• Total length: approx. 300 mm

• Dimensions of base plate: approx. 145 x 300 mm

• Shifting travel: approx. 80 mm

• Selector travel (transverse direction): approx. 80 mm

• Weight (complete): approx. 1,35 kg

• Offset of the gear lever knop (back / up): approx. 0 / 145 mm

Fitted Photos

Compatibility Check

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

Compatibility

Suzuki Swift Sport NZ (ZC 32s) (2010-2017)

Suzuki Swift Sport RZ/AZ (ZC33s) (2018+)

Manufactured by

CAE Racing

Part Number

10080-EXS

Swift NZ:

Swift AZ
