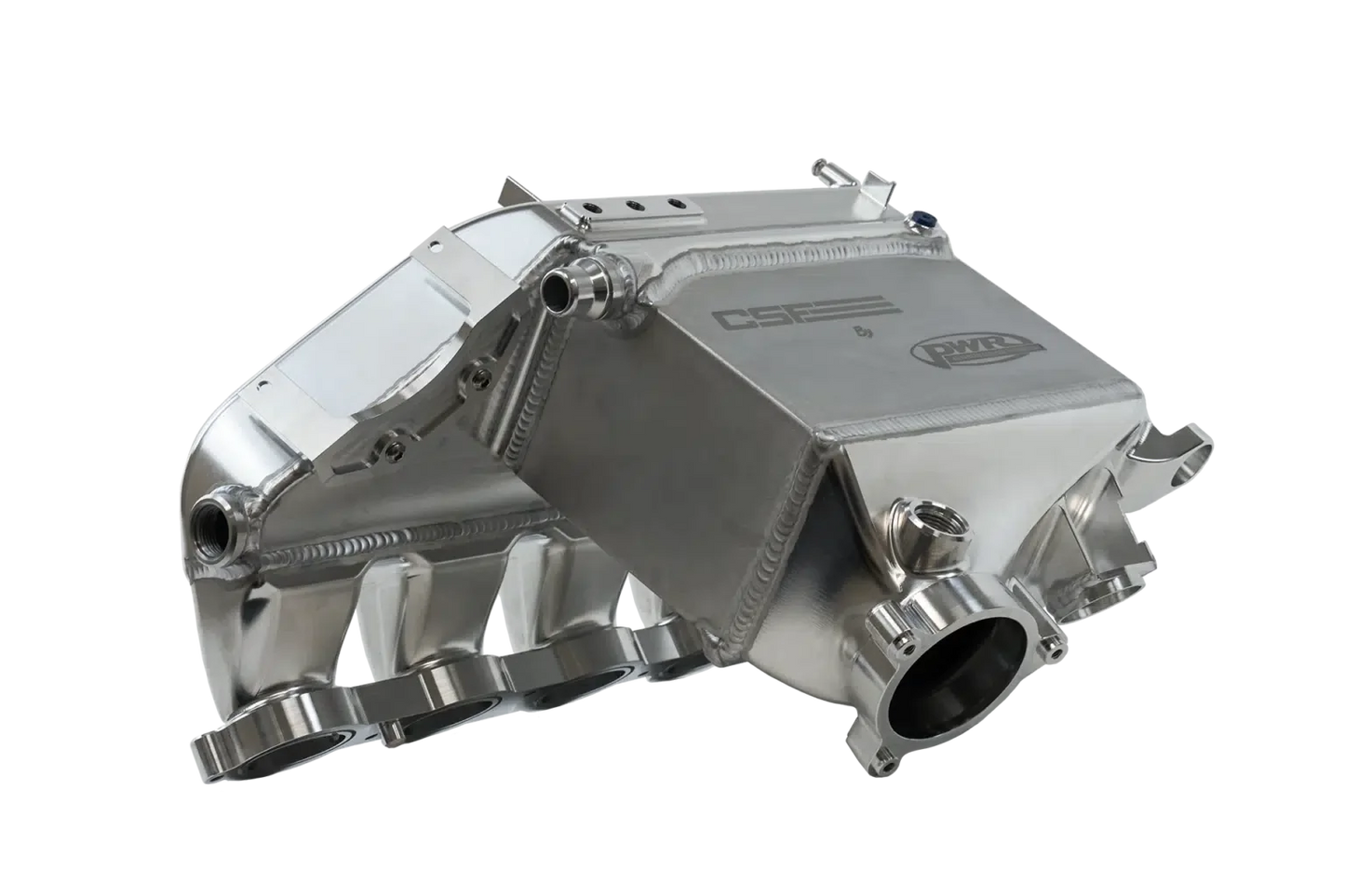

CSF BMW G80 G81 G82 Charge Air Cooler Manifold (M3, M3 Competition, M4 & M4 Competition)

CSF BMW G80 G81 G82 Charge Air Cooler Manifold (M3, M3 Competition, M4 & M4 Competition)

$6,746.00
$7,101.00 $6,746.00
9th Anniversary Badge

Price Match

In Stock

Receive your order by tomorrow if ordered within
00 hours
00 mins
00s.

Get It By

Receive your order tomorrow. Subject to availability.

Collect 0 points

Purchasing this product will earn you 0 loyalty points worth $0.00 USD.

Price Match Guarantee

If you find a lower price at an eligible UK retailer website, we will match it.

Fitting service at Xatrix, West Yorkshire

We can offer a fitting service for this part. Contact us for a fitting quote.

UNLOCK BIGGER DISCOUNTS WITH ML PLATINUM
Sign Up

Sign up now for FREE

View full details

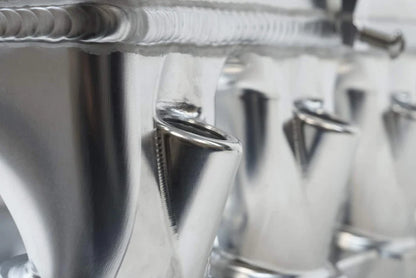

Adding power always requires more fuel. Similar to the industries best selling B58 “Super Manifold” (CSF #8200), the G8X M3/M4 S58 “Level-Up” Manifold features a top feed port injection system. The injector bungs are machined directly into the intake runners. The kit includes both the Fuel Rail and CNC Machined Block-Off Caps for non-use.




In addition, the manifold also has integrated ports on each runner for Nitrous or Methanol Injection. Individual ports for each runner allows for maximum control and tuning.



Finishes

  1. 8233 is the 'standard finish' in raw aluminium
  2. 8233B is a special thermal dispersion coating which helps with dissipating heat (current images are of a different product, used to illustrate the finish)
  3. 8233C is to have your charge-air cooler manifold painted from our extensive range of custom coatings OR if your desired finish is not listed, simply choose 'CUSTOM' and enter the specifics in the notes when ordering. (current images are of a different product, used to illustrate the finish)

NOTE: This is a NEW product. Order will be filled in the order in which they are received.

An example of extended wait times due to high demand was the launch of the B58 Super Manifold (CSF #8200) in August of 2021. Within the first week of its release, 60 Kits were sold, taking ~3 months fulfill back orders.

 CSF BMW G80 G81 G82 Charge Air Cooler Manifold (M3, M3 Competition, M4 & M4 Competition) - ML Performance UK



  • Faster recovery of Intake Air Temperatures (IATs)
  • ~30°F reduction of Intake Air Temperatures (IATs) compared to OEM
  • Less pressure drop compared to OEM core
    • Puts less stress on the turbo system, allowing more boost to be made at higher target power levels

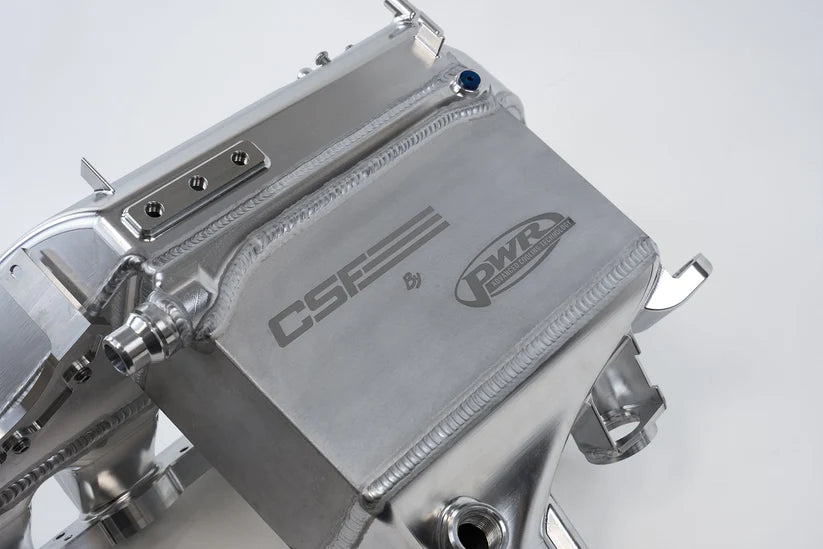

  • Ultra strong CNC Billet construction replaces weak plastic tanks with crimped-on gasket sealing core.

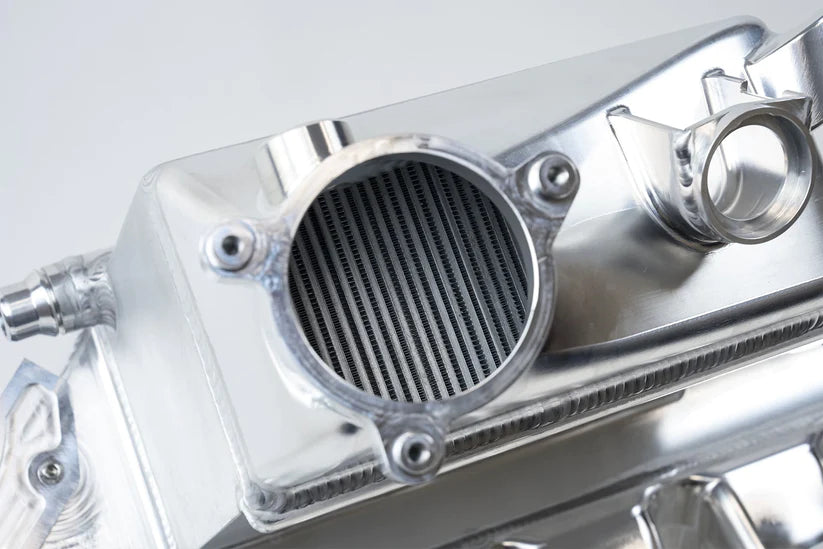

  • High performance bar/plate intercooler core by PWR pressure tested to 120psi
    • OEM cooler is a tube/fin core which is prone to failing at pressures over ~27psi
  • Top feed port injection w/ included fuel rail (w/ CNC machined block-off caps included for non-use)
  • Integrated Nitrous/Methanol Injection Ports
    • Individual ports for each runner for maximum control
  • Integrated vacuum and parameter pad to measure additional parameters
  • Easy access to spin-off oil filter
  • Integrated breather port for easy bleeding of air from the water side of the manifold
  • Included KIYLEX Thermal Rejection Manifold Spacer
    • Made from KIYLEX® – A patented revolutionary high-performance final stage polymer
    • Acts as a thermal barrier that dissipates heat between the cylinder head and intake manifold
    • Proven to lower intake manifold temperatures by up to 15%
    • Lowers Intake Air Temps (IATs)
  • All necessary brackets, hardware, and instructions to install
  • Raw Billet Aluminum Finish (#8233)
  • Thermal Black Heat Dispersion Powder-Coating Finish (#8233B)
  • Available in custom colors from the leader in BMW cooling customization (#8233C)
  • True Plug-and-Play “Drop-in Fit” Installation – Requires Absolutely No Modifications.
  • OEM level of fit and finish
  • Limited Lifetime Warranty



  • BMW M Series G87 M2 (2023+)
  • BMW M Series G80 M3 (2021+)
  • BMW M Series G80 M3 Competition (2021+)
  • BMW M Series G81 M3 Competition (2023+)
  • BMW M Series G82 M4 (2021+)
  • BMW M Series G82 M4 Competition (2021+)
  • BMW M Series G83 M4 (2022+)
  • BMW M Series G83 M4 Competition (2022+)



8233



Manufactured by

CSF Radiators


Warranty

2 Years CSF Radiators Warranty
