EBC

EBC PD06KF002 Abarth Chrysler Fiat Lancia Greenstuff Front Brake Pad & USR Disc Kit - TRW/Bosch Caliper (Inc. 500, 595, Delta, Bravo, Fiorino)

EBC PD06KF002 Abarth Chrysler Fiat Lancia Greenstuff Front Brake Pad & USR Disc Kit - TRW/Bosch Caliper (Inc. 500, 595, Delta, Bravo, Fiorino)

Regular price $192.00
Regular price $209.00 Sale price $192.00
9th Anniversary Badge

Price Match

In Stock

Receive your order by tomorrow if ordered within
00 hours
00 mins
00s.

Get It By

Receive your order tomorrow. Subject to availability.

Collect 0 points

Purchasing this product will earn you 0 loyalty points worth $0.00 USD.

Price Match Guarantee

If you find a lower price at an eligible UK retailer website, we will match it.

Fitting service at Xatrix, West Yorkshire

We can offer a fitting service for this part. Contact us for a fitting quote.

UNLOCK BIGGER DISCOUNTS WITH ML PLATINUM
Sign Up

Sign up now for FREE

View full details

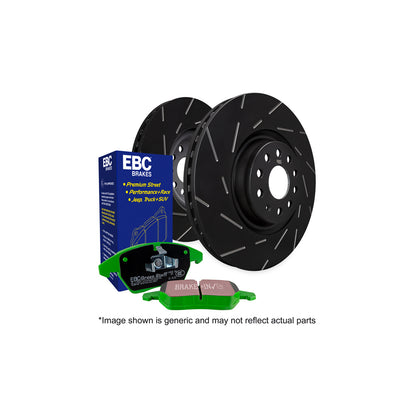

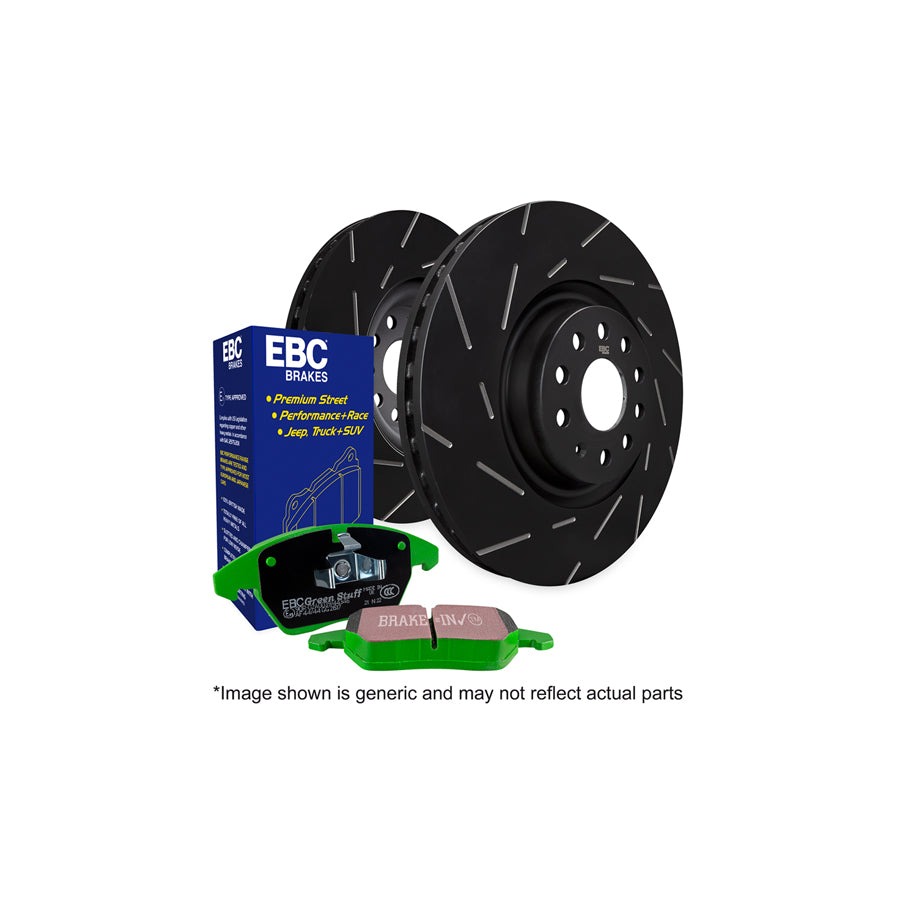

  • Kit contains one set of Greenstuff brake pads and one pair of USR slotted brake discs
  • Money saving brake kit including one set of pads and a pair of discs
  • Greenstuff 2000 series type approved upgrade brake pad
  • Medium dust pads which give a brake improvement of up to 15%
  • Pads are designed to last longer than OE
  • Pair of slotted upgrade brake discs with grooves that are designed to dispel gasses and debris

Greenstuff 2000 series sport upgrade brake pads are manufactured in the UK and are type approved for your vehicle. Designed for long life with medium dust and featuring Brake-In coating for faster bed-in.

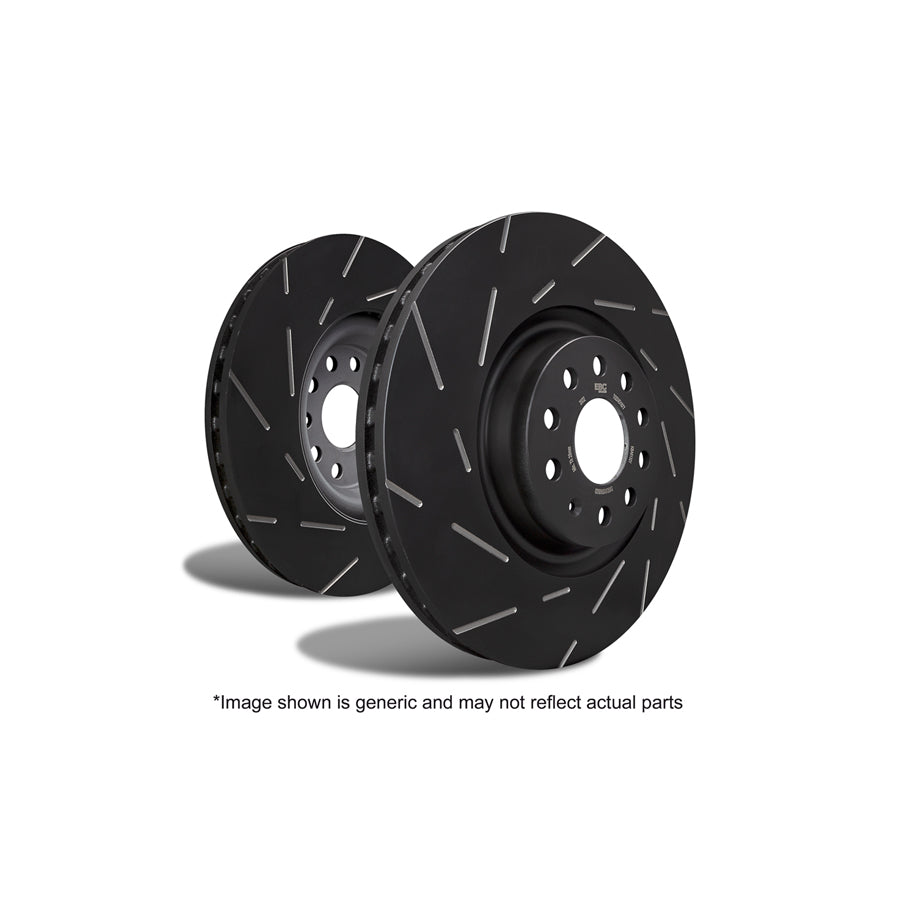

One pair of slotted upgrade brake discs, slots dispel gasses and debris and give quiet braking. Manufactured from unique disc alloys and thermic black coated for corrosion resistance. These discs are runout tested.

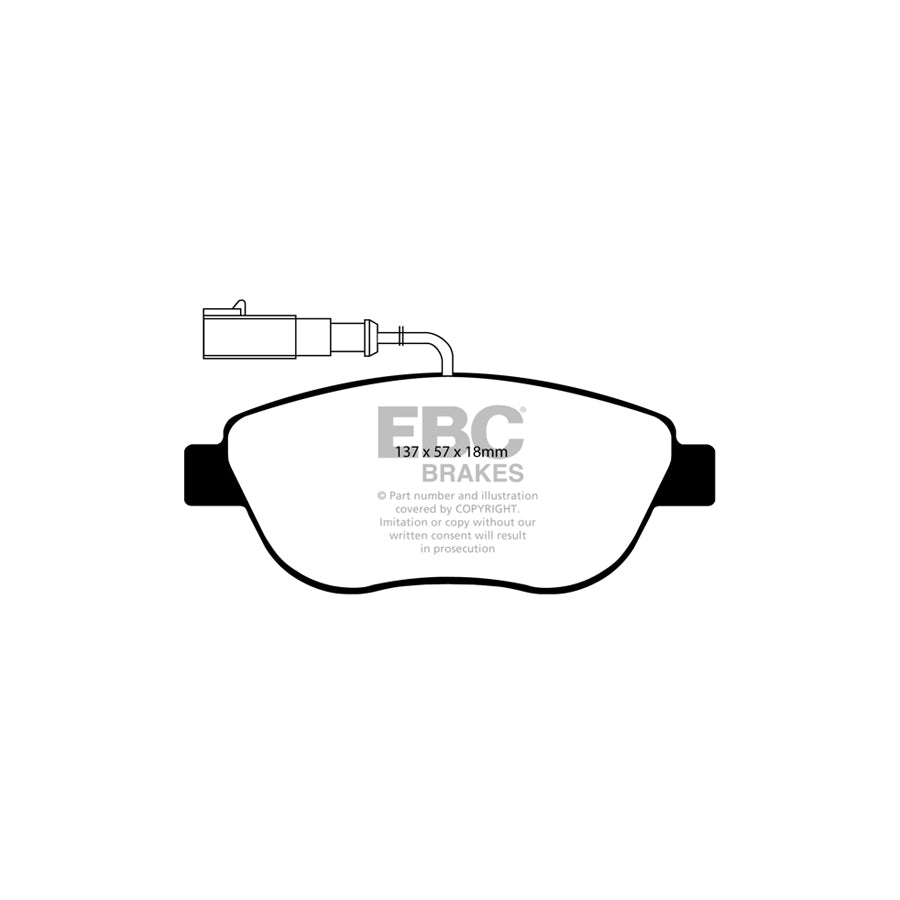

Pad A Dimensions : 137 x 57 x 18
Disc Type : Slotted
Solid or Vented? : V
Disc Bolts : 4
Disc Diameter : 284mm
Disc Height : 44mm
Disc Thickness New : 22mm
Disc Thickness Min : 22mm
Kit Components : DP21383/2 + USR414



Model Sub-Model Engine BHP Year Position
500 - 1.4 Turbo 135 2011-2021 Front
500 - 1.4 Turbo 160 2011-2021 Front
595 - 1.4 Turbo 145 2016- Front
595 - 1.4 Turbo 160 2012-2016 Front
595 - 1.4 Turbo 165 2016-2021 Front

Model Sub-Model Engine BHP Year Position
Delta - 1.4 Turbo 120 2011-2021 Front
Delta - 1.4 Turbo 140 2011-2021 Front
Delta - 1.6 TD - 2011-2021 Front

Model Sub-Model Engine BHP Year Position
Bravo - 1.4 Turbo 120 2010-2014 Front
Bravo - 1.6 TD 105 2010-2014 Front
Bravo - 1.6 TD 120 2010-2014 Front
Bravo - 1.9 TD 120 2010-2014 Front
Fiorino Combi - 1.3 TD 95 2010-2020 Front

Model Sub-Model Engine BHP Year Position
Delta - 1.4 Turbo 120 2010-2014 Front
Delta - 1.4 Turbo 140 2010-2014 Front
Delta - 1.6 TD - 2010-2014 Front



To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



EBC-PD06KF002



Manufactured by

EBC Brakes

Warranty

EBC one year or 10,000 miles warranty
