Acceleration Time : 60-130mph Reduced By 0.2 seconds

The B48 Eventuri intake system was developed through extensive real world testing and airflow simulation analysis. It features our patented Venturi housing system with an integrated Mass Air Flow sensor section for the smoothest possible airflow to the turbo inlet tube. The housing encases our bespoke generation 2 dry filter which helps to shape the airflow to maintain laminar conditions. The housing seals to the front duct which has been maximised in volume to reduce any potential restrictions in flow. The duct ensures that only ambient air is provided to the filter thus IATs are steady for most driving conditions. The system allows for better throttle response and allows for the turbo to work with a lower waste-gate duty cycle.

The B48 Eventuri system uses our Patented Carbon Fibre Housings with our Gen 2 bespoke filters, which provide an aerodynamically efficient airflow path from the filter to the turbos. Not just another cone filter with a heat shield but a unique design which invokes the Venturi affect and maintains laminar flow conditions to reduce the drag on the turbo. You can read more about the housing design and how it works HERE.

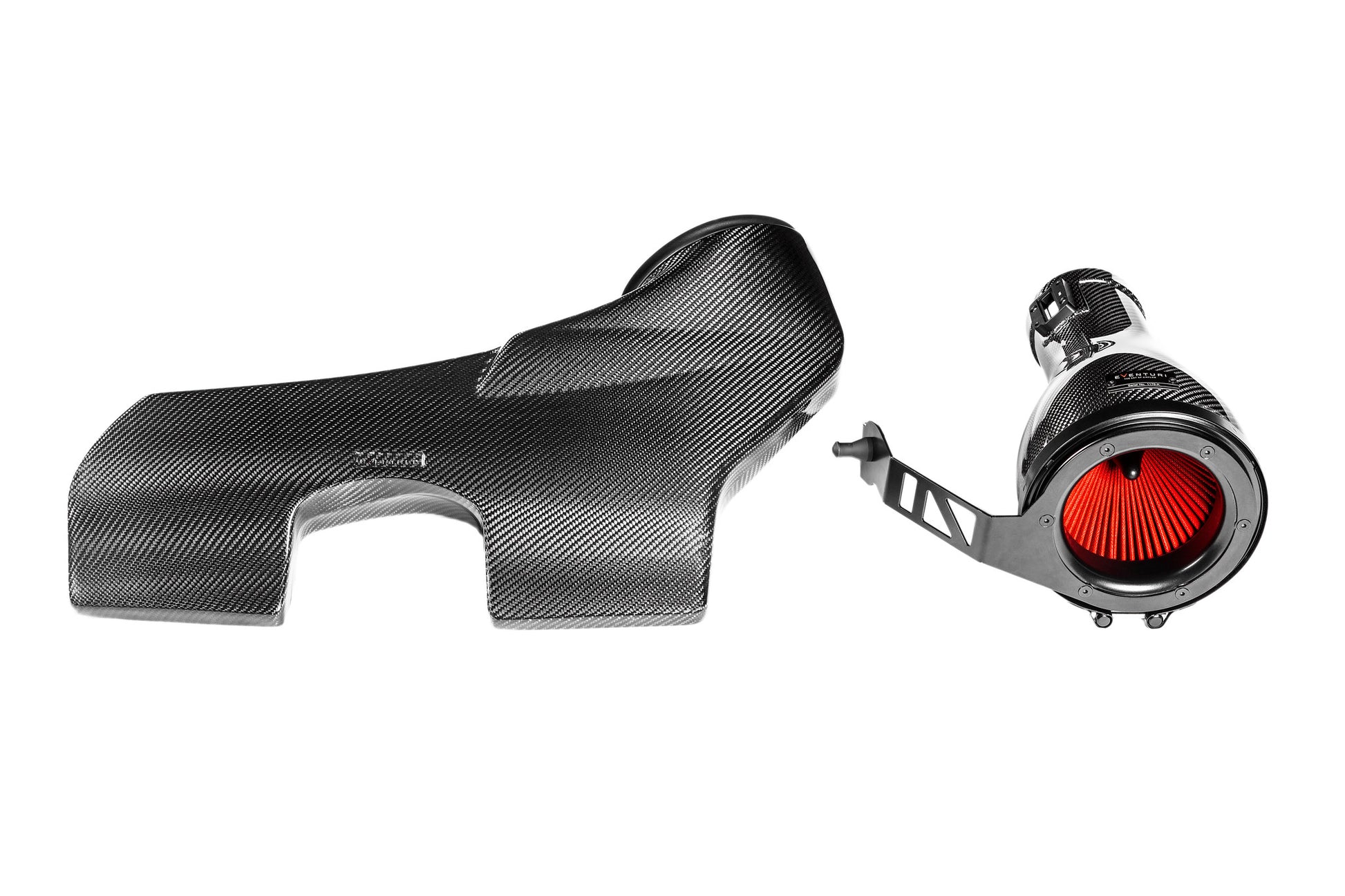

The Eventuri B48 intake system consists of a number of components engineered to perform a specific purpose and fabricated to the highest of standards. Here are the details for each component and the design ethos behind them:

• Carbon Fiber Venturi Housing with Integrated MAF Tube
• Bespoke High Flow Generation 2 Filter
• Carbon Fiber Sealed Duct
• Aluminium Inlet Cowls
• 2 x Laser Cut Stainless Steel Bracket Work

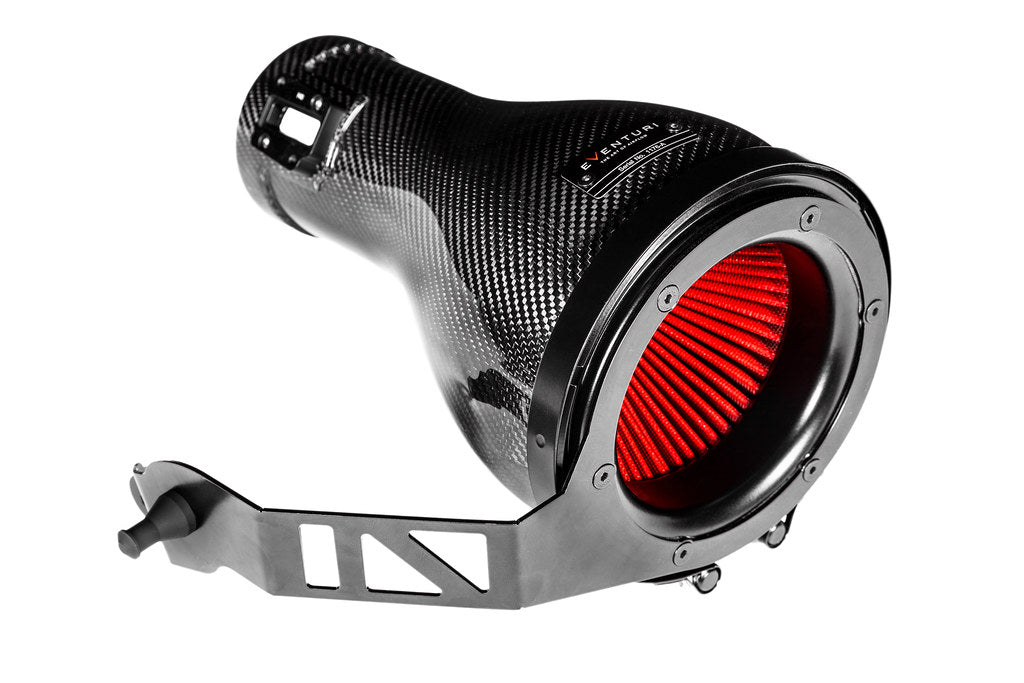

Filter Housing Assembly

The filter housing comprises of our bespoke generation 2 filter, aluminium inlet cowl, stainless steel bracket and the integrated MAF section. The carbon pod shrouds the reverse mounted filter and smoothly shapes the airflow down to the MAF section which then connects to the stock inlet tube. This changes the flow path from the OEM airbox where airflow enters the front of the airbox, changes direction by 90 degrees to travel through the panel filter and then changes direction again by 90 degrees to move through the MAF section. Our system is a lot more direct with airflow entering the front of the filter housing and and moving into the MAF section without any abrupt direction changes. The result is a smoother path from the filter to the turbo inlet tube and therefore the turbo is able to function with less drag.

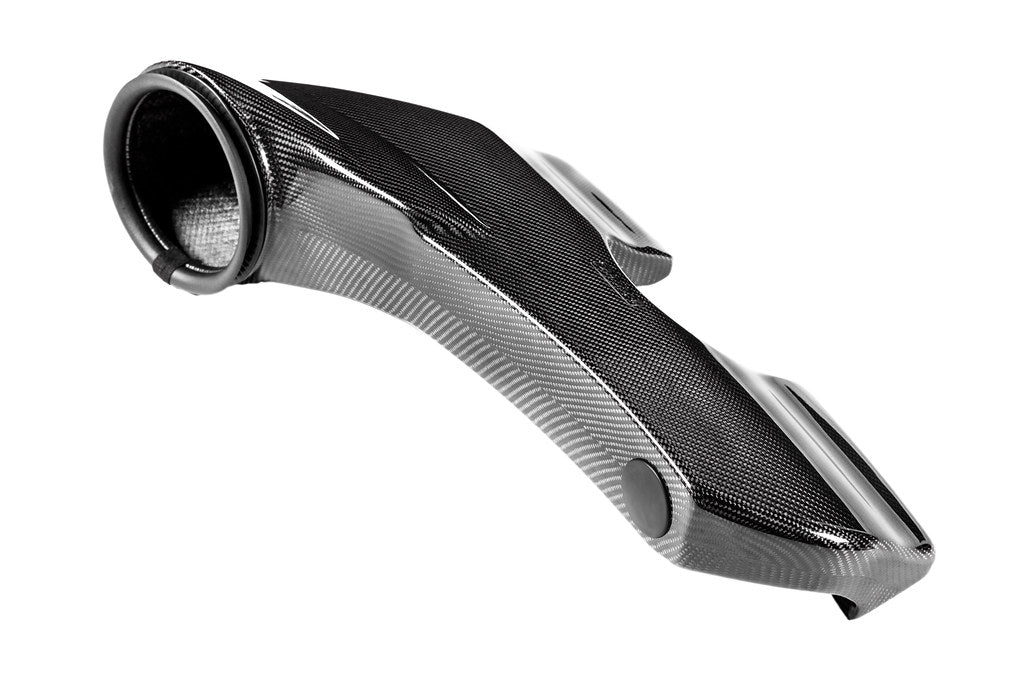

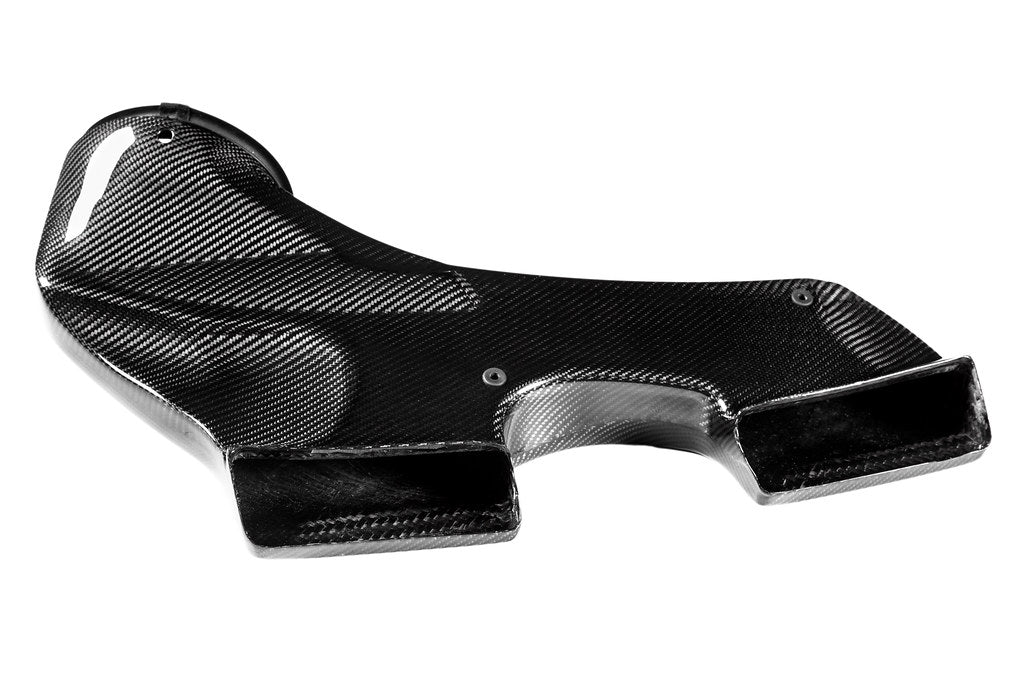

Carbon Duct

We have redesigned the duct to maximise the internal volume. With the mounting points now hidden, the duct makes use of all the given space over the slam panel. In order to protect against engine bay heat - the duct has a flexible rubber edging around the opening to the filter housing which ensures a good seal to the filter as well as allowing movement with the engine.

• BMW 1 Series F40  (2018-Present)
• 128ti & M135ix
• BMW 2 Series F44  (2018-Present)
• 228i(x) & M235ix
• BMW X Series F39 X2  (2017-Present)
• X2 35ix

EVE-F4XB48-CF-INT

Manufactured by

Eventuri

Warranty

One Year Eventuri Warranty
