Adding larger a larger turbo or more boost to your VW/Audi 4 cylinder engine? Upgrade the weak links in your block and keep your engine together reliably with IE's market-leading Volkswagen and Audi forged connecting rods!

• 20mm wrist pin works with all aftermarket 20mm pistons and some* stock pistons
• Forged from vacuum drawn 2 pieces 4340 chrome moly steel
• Upgraded H beam design greatly increases strength and durability
• Combination tested to 700HP on 4 cylinder engines
• Includes IE Spec ARP 2000 rod bolts with "IE" stamp to ensure a genuine product
• Individual computer-optimized design to match unique VW/Audi engine applications
• Honed to exacting tolerances within 250 millionths of an inch
• Optional forced pin oiling (rifle drilling) for long wrist pin life
• Each connecting rod set is balanced to weights within +/- 1 gram
• Dimensionally and magnaflux inspected to ensure extreme reliability
• Multi-stage heat treated for dimensional stability and fatigue life

Overview

Technical Dimensions

• Center to Center: 144mm
• Wrist Pin Diameter: 20mm
• Big End Journal Width: 24.90mm
• Wrist Pin Style: Non-tapered
• Big End Journal Diameter: 50.60mm
• Rod Bolt Dimensions: 3/8" x 1.5" UHL

• Average Rod Weight (with Bolts): 574 grams


Additional Features

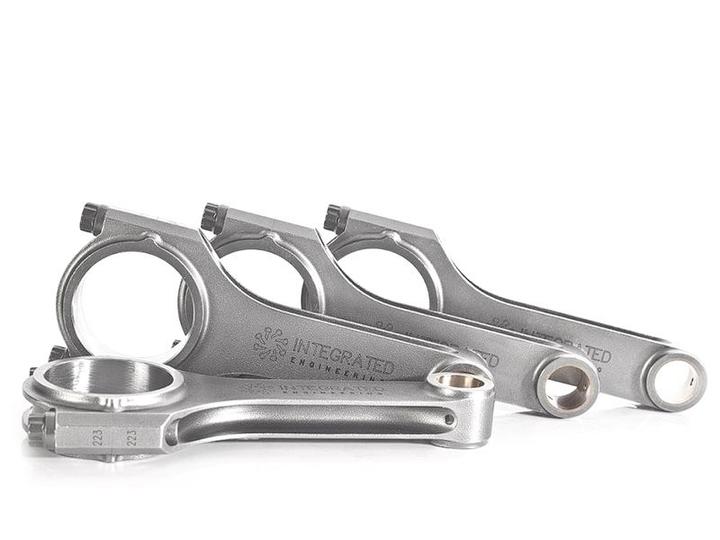

H Beam Design

The H-beam design is the workhorse of our connecting rod product line. This design features strength, durability, stiffness, and rigidity. IE H-beam Connecting Rods are a great upgrade over weaker factory units.

Computer Optimized

All IE rods are designed specifically for the application using relevant cylinder pressure and other application-specific factors. We put our vast European engine knowledge to use when designing each application.

Rifle Drilling

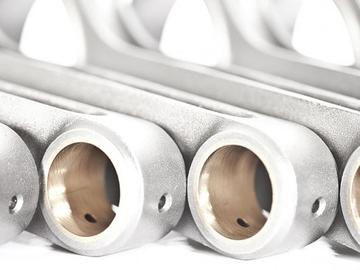

Also referred to as Forced Pin Oiling (FPO), rifle drilling increases wrist pin longevity by providing additional lubrication. This upgrade is highly recommended for street-driven cars that see mileage put on them. Rifle drilling is sold separately on this application.

Honed In-House

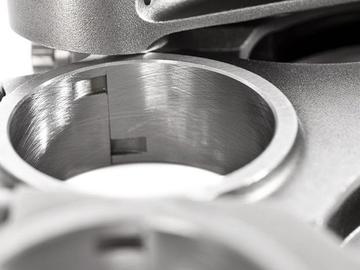

Honing the connecting rod big end in-house on state of the art equipment ensures the tolerances are set correctly to ensure proper bearing operation. Lesser quality rods are often not honed with the same attention to detail.

Material Forged 4340

Made from strong and durable 2 piece 4340 forgings these rods will withstand almost everything you can throw at them.

IE/ARP Rod Bolts

All IE rods come standard with ARP 2000 rod bolts. The rod bolts included in every set of IE rods are stamped with the letters "IE" as a way to ensure you have a genuine set of IE rods.

Included ARP 2000 Rod Bolt Torque Specs

*The following torque spec is for the included ARP 2000 3/8" rod bolts using the included ARP assembly lubricant only. Do not follow this guide using ARP +625, other assembly lubricant, or alternative bolts.

Stretch Gauge

The preferred method of measuring bolt load is with a stretch bolt gauge. The included ARP 2000 bolts need to be tightened and measured to .006” of stretch using the included ARP assembly lubricant.

Torque Wrench

When using a high-quality torque wrench, first verify the torque wrench has not been dropped and is properly calibrated. A un-calibrated torque wrench can lead to under/over torque and rod bolt failure. Torque each rod bolt to a final torque of 50 ft/lbs. We recommend torquing the bolt, breaking it loose, and re-torquing the bolt 3 times per bolt. This ensures proper rod bolt stretch and that the rod cap is fully seated. Do not exceed 50 ft/lbs. This torque spec is based off the included ARP assembly lubricant.

Technical Details

Connecting rods are some of the highest stressed components in an engine and thus require extreme attention to detail to ensure proper operation and reliability.  Integrated Engineering ensures the success of your next engine build by putting each set of connecting rods through a rigorous quality control process. For years Integrated Engineering H-beam Rods have been an integral part of delivering the power that the highest powered turbo setups and race engines demand.

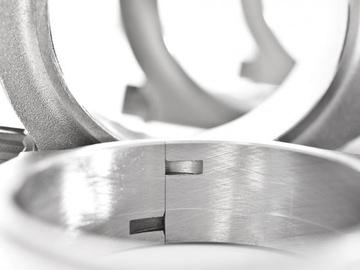

Extra attention has been paid to even the smallest details such as the bearing tangs, wrist pin fit, and big end side clearance, providing a level of fit and finish not found anywhere else. Each and every set is finish machined and honed in-house for perfectly round and on size big-end bores, resulting in the industry's lowest failure rates. All rods in this series feature generous wrist pin oiling and optional rifle drilling.  One of the hallmarks of a high quality connecting rod is its strength to weight ratio. In order to create this balance of strength and lightweight, our optimized H beam design is utilized and validated using modern CAD drafting and FEA analysis techniques. These techniques ensure the rod is as light and strong as possible, perfected for today's powerful and high rpm European applications.

• Audi - A4 1996-2001 (B5 - B5.5) 1.8T 20V 058 & 06A engines
• Audi - A4 2002-2005 (B6) 1.8T 20V engines
• Audi - A4 2005-2008 (B7) 2.0T FSI EA113 engines
• Audi - A6 1998-2004 (C5) 1.8T 20V engines
• Audi - A6 Allroad 1998-2004 (C5) 1.8T 20V engines
• Audi - A6 2005-2011 (C6) 2.0T FSI EA113 engines
• Audi - A6 Allroad 2005-2011 (C6) 2.0T FSI EA113 engines
• Audi - TT 2000-2006 (MK1 - 8N) 1.8T 20V engines
• Audi - TT 2008-2015 (MK2 - 8J) 2.0T FSI EA113 engines (timing belt driven engines only)
• Audi - TTS 2008-2015 (MK2 - 8J) 2.0T FSI EA113 engines
• Audi - A3 1996-2003 (MK1 - 8L) 1.8T 20V engines
• Audi - S3 1996-2003 (MK1 - 8L) 1.8T 20V engines
• Audi - A3 2006-2013 (MK2 - 8P) 2.0T FSI EA113 engines (timing belt driven engines only)
• Audi - S3 2006-2013 (MK2 - 8P) 2.0T FSI EA113 engines
• VW - Golf 1993-1999.5 (MK3) 2.0L 8V engines & 2.0L 16V ABF engines
• VW - Golf 1999-2005 (MK4) 1.8T 20V engines & 2.0L 8V engines
• VW - GTI 1999-2005 (MK4) 1.8T 20V engines
• VW - GTI 2006-2009 (MK5) 2.0T FSI EA113 engines (timing belt driven engines only)
• VW - Golf R 2012-2012 (MK6) 2.0T FSI EA113 engines
• VW - Corrado 1988-1995 (A3) G60 & 2.0L 16V ABF engines
• VW - Jetta 1993-1999 (MK3) 2.0L 8V & 2.0L 16V ABF engines
• VW - Jetta & Jetta GLI 1999-2005 (MK4) 1.8T 20V & 2.0L 8V engines
• VW - Jetta & Jetta GLI 2006-2010 (MK5) 2.0T FSI EA113 engines (timing belt driven engines only)
• VW - Beetle 1998-2011 (1C - 9C - 1Y) 1.8T 20V, 2.0L 8V engines, & 2.0T FSI EA113 engines (timing belt driven engines only)
• VW - Passat 1998-2005 (B5 - B5.5) 1.8T 20V 058 & 06A engines
• VW - Passat 2006-2010 (B6) 2.0T FSI EA113 engines (timing belt driven engines only)
• VW - EOS 2006-2015 (1F7) 2.0T FSI EA113 engines (timing belt driven engines only)

Piston Fitment Guide

• VW & Audi - 1.8T 20V stock piston compatible engine codes: AEB, AGU, AMK, AMU, APX, APY, ATC, ATW, AWD, AYP, BAM, BEA
• VW & Audi - 1.8T 20V aftermarket pistons only engine codes: AMB, ARX, ARY, ATW, AUM, AWM, AWP, AWW, BJX
• VW & Audi - 2.0T FSI EA113 aftermarket pistons only (all engine codes)
• VW - 2.0L 8V aftermarket piston compatible engine codes: AEG, AZG
• VW - 1.8L 8V stock & aftermarket pistons compatible engine codes: JH
• VW - G60 1.8L 8V aftermarket pistons only engine codes: PG
• VW - 2.0L 16 stock & aftermarket pistons compatible engine codes: 9A, KR, PL

1.8T 20V Stroker Kit Compatible

This connecting rod can be used to increase the stroke and displacement of all 06A 1.8T engine codes when paired with 1.8T stroker pistons and a 2.0L crankshaft.

Available Rod Bearing

Integrated Engineering Mahle Audi Volkswagen Motorsport/ Vandervell Race Rod Bearing Set

Integrated Engineering Calico Audi Volkswagen 1.8T 2.0T B5 C5 MK1 MK3 Coated Rod Bearing Set (A4, A6, Beetle, Golf,& Passat)

IERHVA1-RD (Add Rifle Drilling)

IERHVA1 (No Rifle Drilling)

Manufactured By

Integrated Engineering
