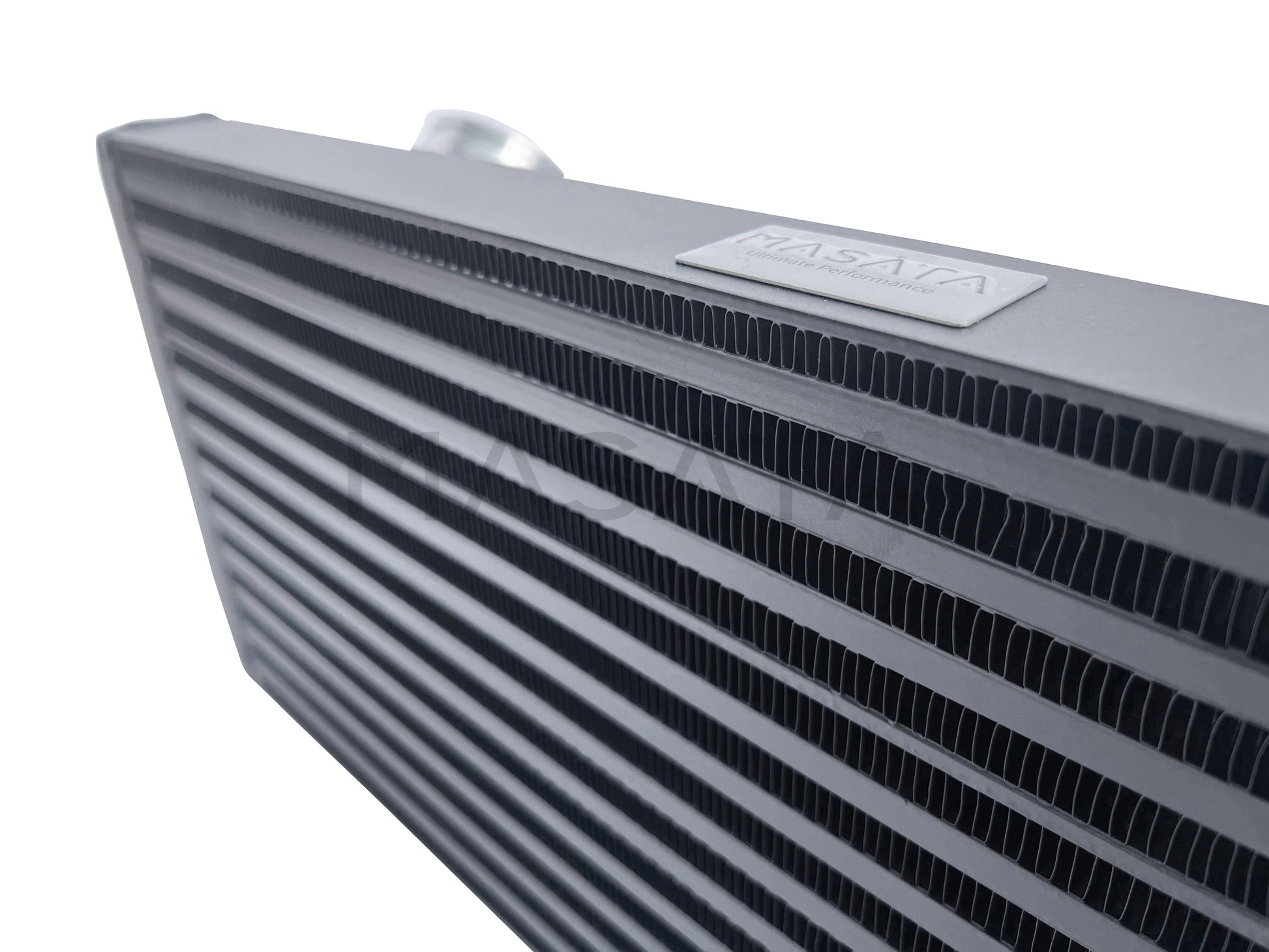

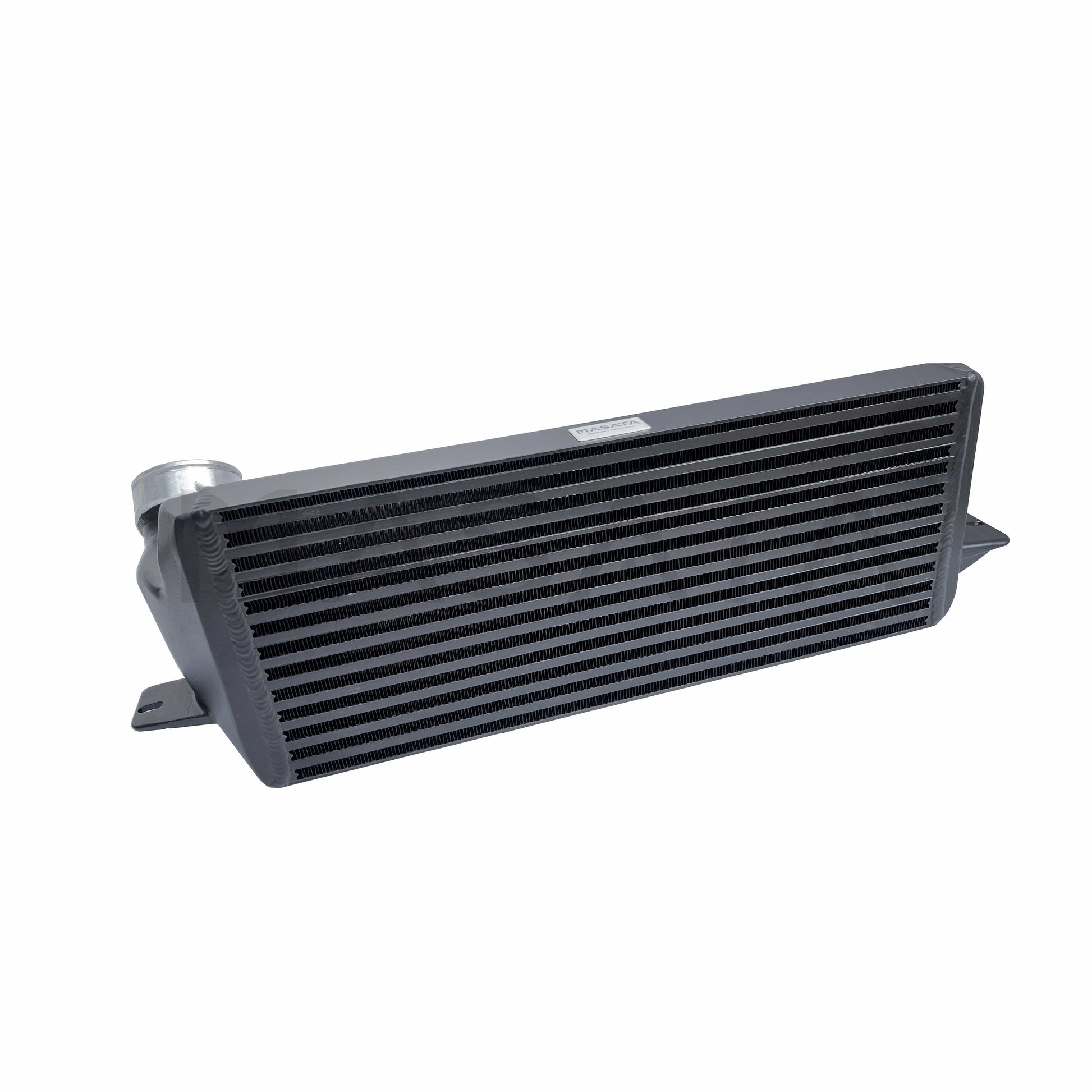

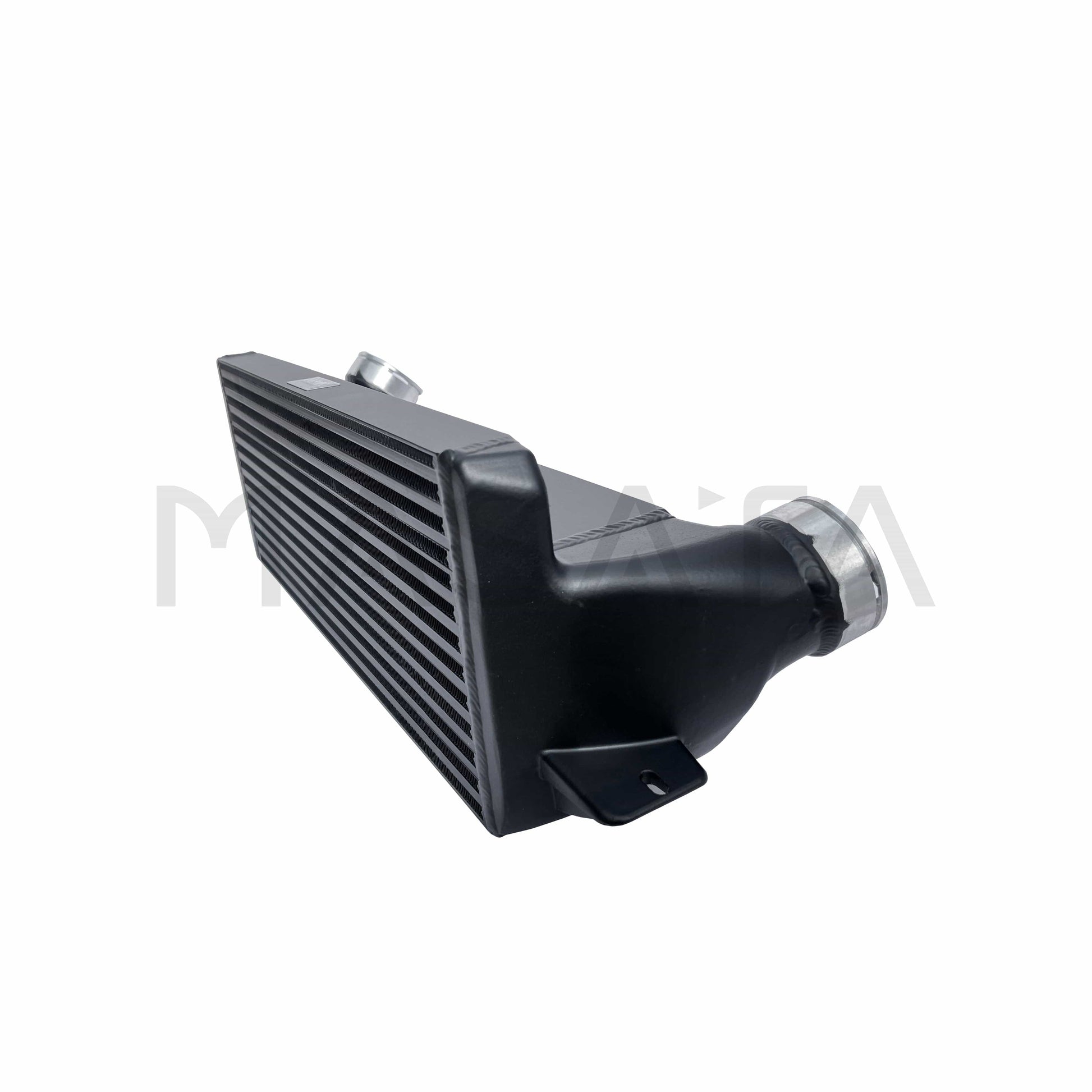

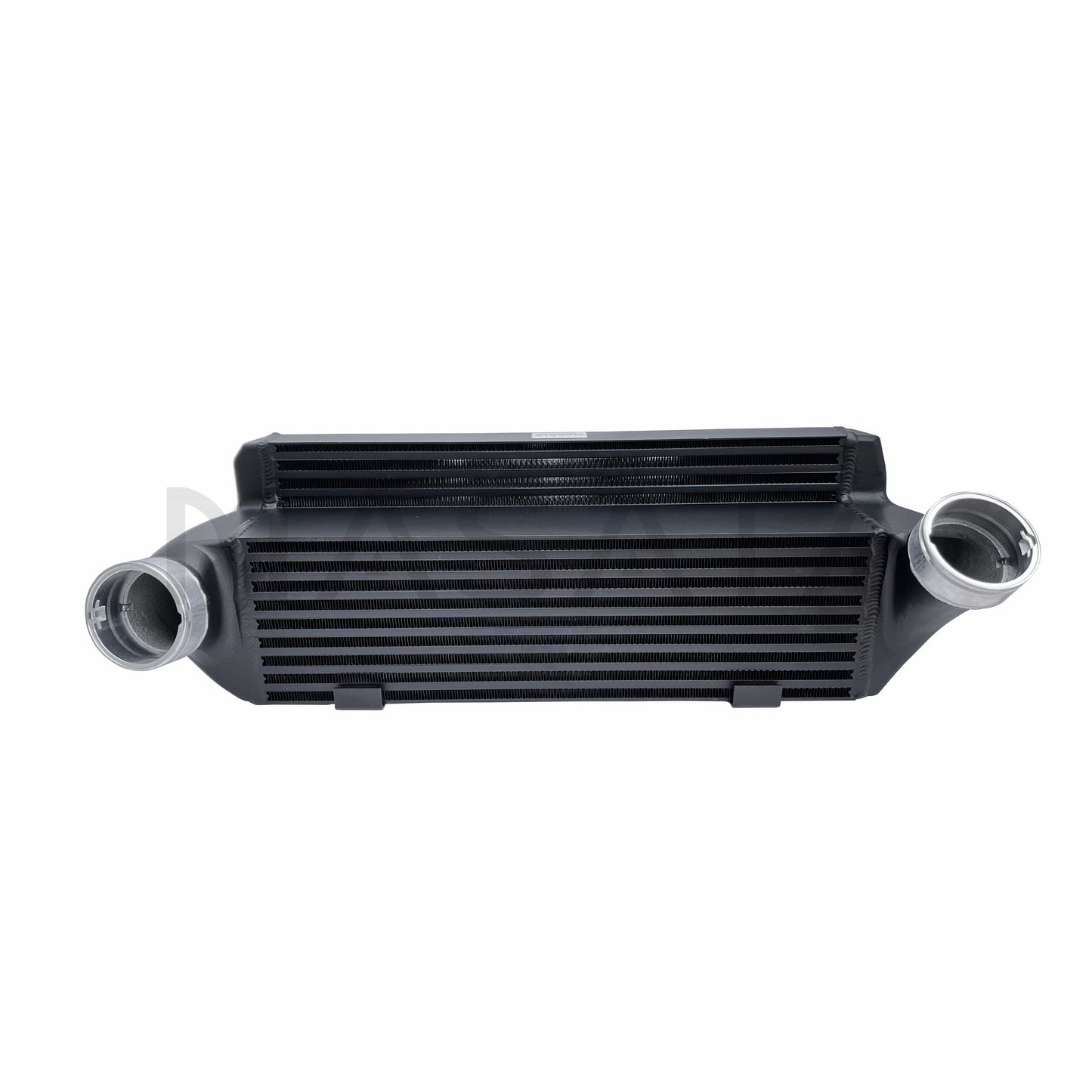

The Masata N54 N55 Stepped Performance HD intercooler delivers better cooling, more power to the wheels, and allows you to hold that power longer during extended runs. With a larger core and more surface area than stock, your intercooler pressure drop is reduced and cooling dramatically improved. Resulting in peak power gains of around 10bhp and during longer pulls and back to back runs as much as 20-30bhp over the factory intercooler. The Masata performance intercoolers are painted black for a stealthy appearance.

The Masata performance intercoolers are a direct replacement for your factory intercooler and fully reversible. Accessories are not included.

• High Density Fins for ultimate performance
• Larger core and more surface area than stock
• Adds 10-30bhp once tuned
• Direct replacement, OEM Fitment
• Significantly lower Intake temperature

E Chassis Applications:

BMW 1 Series E82 and E88

• N54 BMW 135i 2007 - 2010
• N54 BMW 1M 2011-2013
• N55 BMW 135i 2010 - 2013

BMW 3 Series E90 E91 E92 E93

• N54 BMW 335i/335xi 2007 - 2010
• N54 BMW 335x 2006-2013
• N55 BMW 335i/335xi 2011 - 2013

BMW Z Series E89

• N20 BMW Z4 18i (2011-2016)

• N20 BMW Z4 20i (2011-2016)
• N20 BMW Z4 28i (2011-2016)
• BMW Z4 35i (2009-2016)
• BMW Z4 35is (2010-2016)

IAT Test Results on Stock Intercooler (Click to Enlarge)

BMW N54 FBO | Outside Temp. 91 °F | Stock FMIC | Start Temp. 109°F | End. Temp. 192°F | Temp. Increase 83°F | 2nd - 4th Gear Pull | JB4 Custom Map 6

 IAT Test Results on Masata HD Performance Intercooler (Click to Enlarge)

Test results - Stock Intercooler

Start Temp. 109°F

End. Temp. 192°F

Temp. Increase 83°F

Test results - Masata Stepped Performance HD Intercooler

Start Temp. 109°F

End. Temp. 127°F

Temp. Increase 18°F (65°F Less than Stock)

Desislav's N54 FBO (Full Bolt On) struggled with the high IAT on his N54 after his tuner increased the boost on his custom map 6 setup to 17-19psi. The car was reaching 192°F after a 2nd to 4th gear pull, which kills timing advance thus reduce power output, this is a 83°F increase in temperature after a single pull. Once he upgraded to the Masata N54 HD Performance Intercooler, this greatly reduced the IAT after the same 2-4th gear pull, from the above test data, the Masata Intercooler was 65°F cooler than stock after the same 2nd - 4th gear pull.

Special thanks to our customer Desislav and his tuner, who shared these amazing test results with us, to once again show that the Masata Intercooler is doing its job.

MST0025

Manufactured by

Masata

Warranty

Lifetime Masata Warranty
