Boost Cooler Water Injection Valve

For all 1/4" Boost Cooler and compatible systems.

Safety Upgrade to any Water Methanol Injection System.

The high flow inline water methanol check valves from SNOW Performance offer superior safety and flow compared to other water methanol check valves on the market. Custom made with 100% methanol resistant stainless steel spring and EPDM seals ensuring zero corrosion even with high concentrations of methanol.

Please Note: Sold individually

• Keeps the water or water-alcohol mixture in the pressure line for instantaneous injection.

• Prevents the liquid from being pushed back into the reservoir when the system is not actively injecting.

• For all water injection nozzle holders without an integrated check valve.

• Redundant protection (motor protection) with a solenoid valve already installed (item no. (Art.No. SP30105).

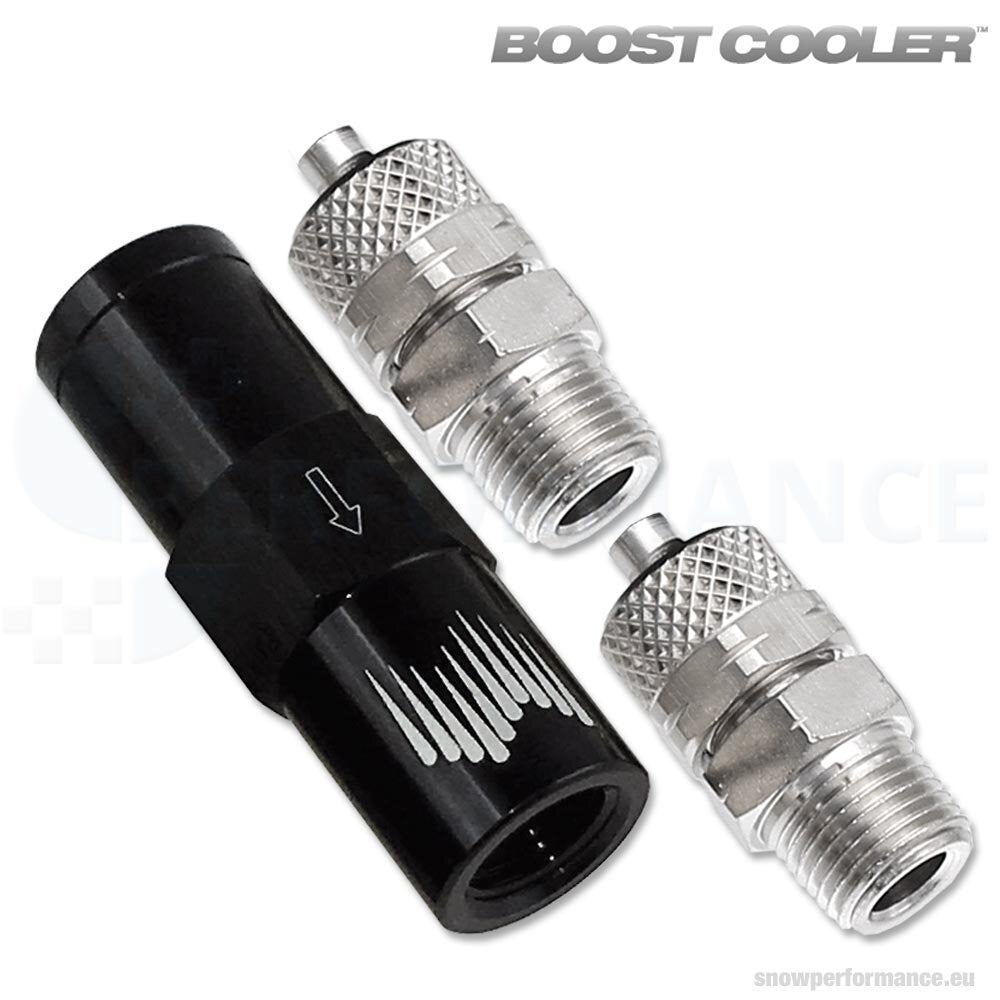

• 1x Reverse Check Valve with 2x 1/8"-NPT Ports (Inlet/Outlet)

• Hard Anodized Black

• 100% Methanol resistance thanks to EPDM Seals and stainless Steel Spring

• 0.48 bar/7 PSI Crack Pressure

• 2x 1/8"-NPT male Fitting with 1/4" Connection, Straight Design

• The Push-In Locking Nuts can be tightened both manually and with a Spanner.

• Suitable for all 1/4" Water-Methanol Injection Pressure Lines

• Material: Brass Nickel plated

Universal

SP30410

Manufactured by

Snow Performance
