The 3.0 Liter V6 biturbo engine (M 276 DE 30 AL) of Mercedes C43 AMG models is equipped with an indirect charge-air cooling circuit. So the cooling of the charged air is realised by a watercooled intercooler which will be replaced by this WagnerTuning high-performance intercooler.

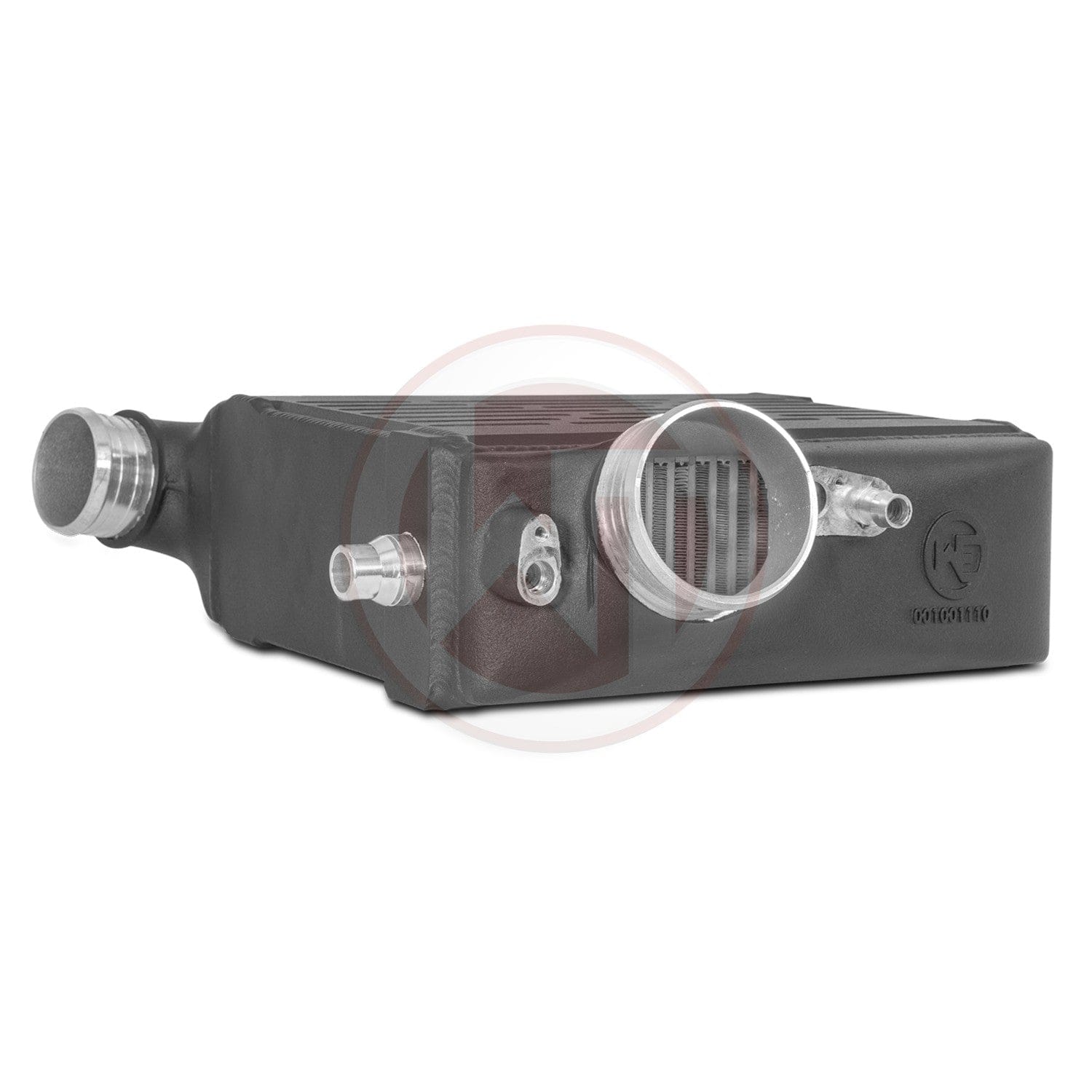

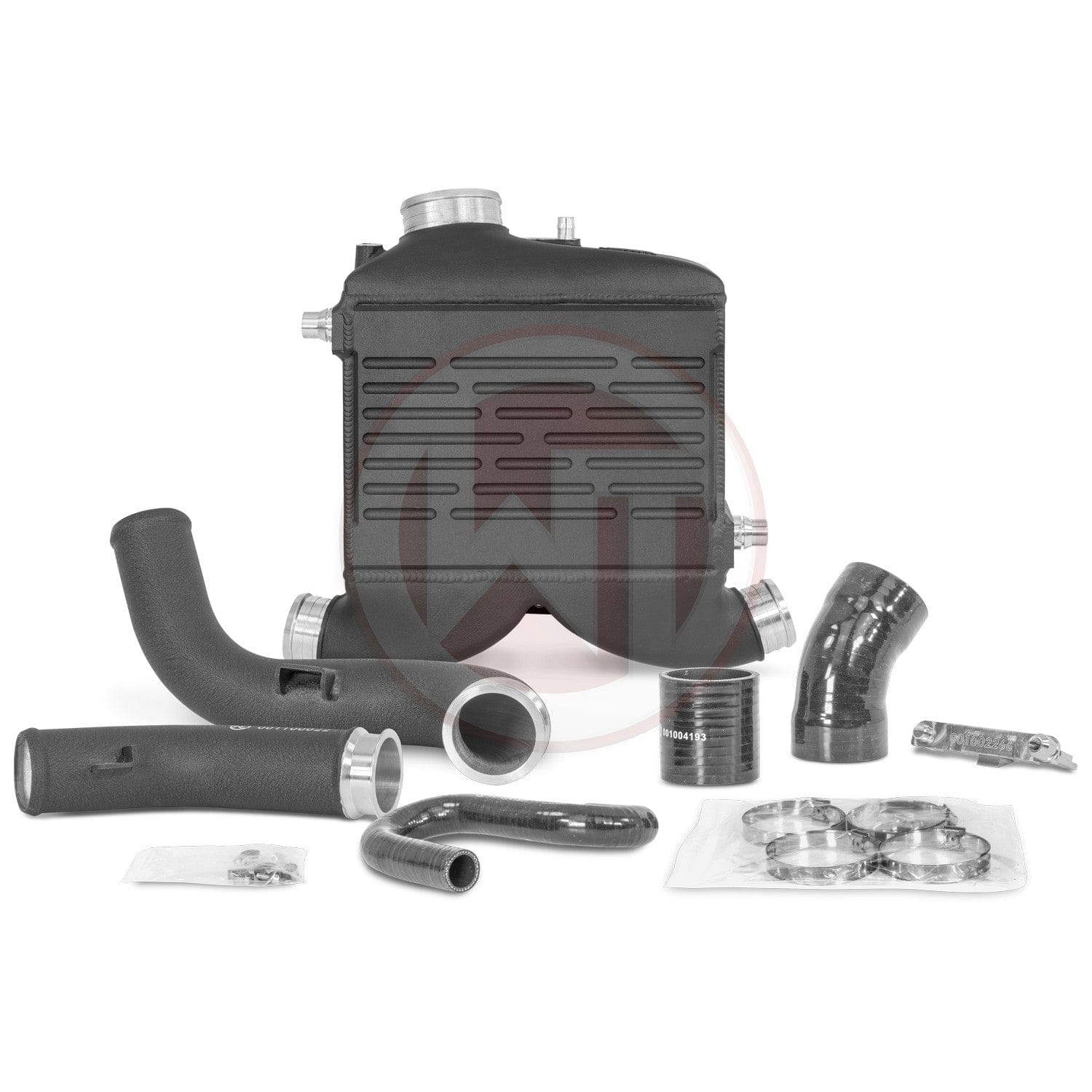

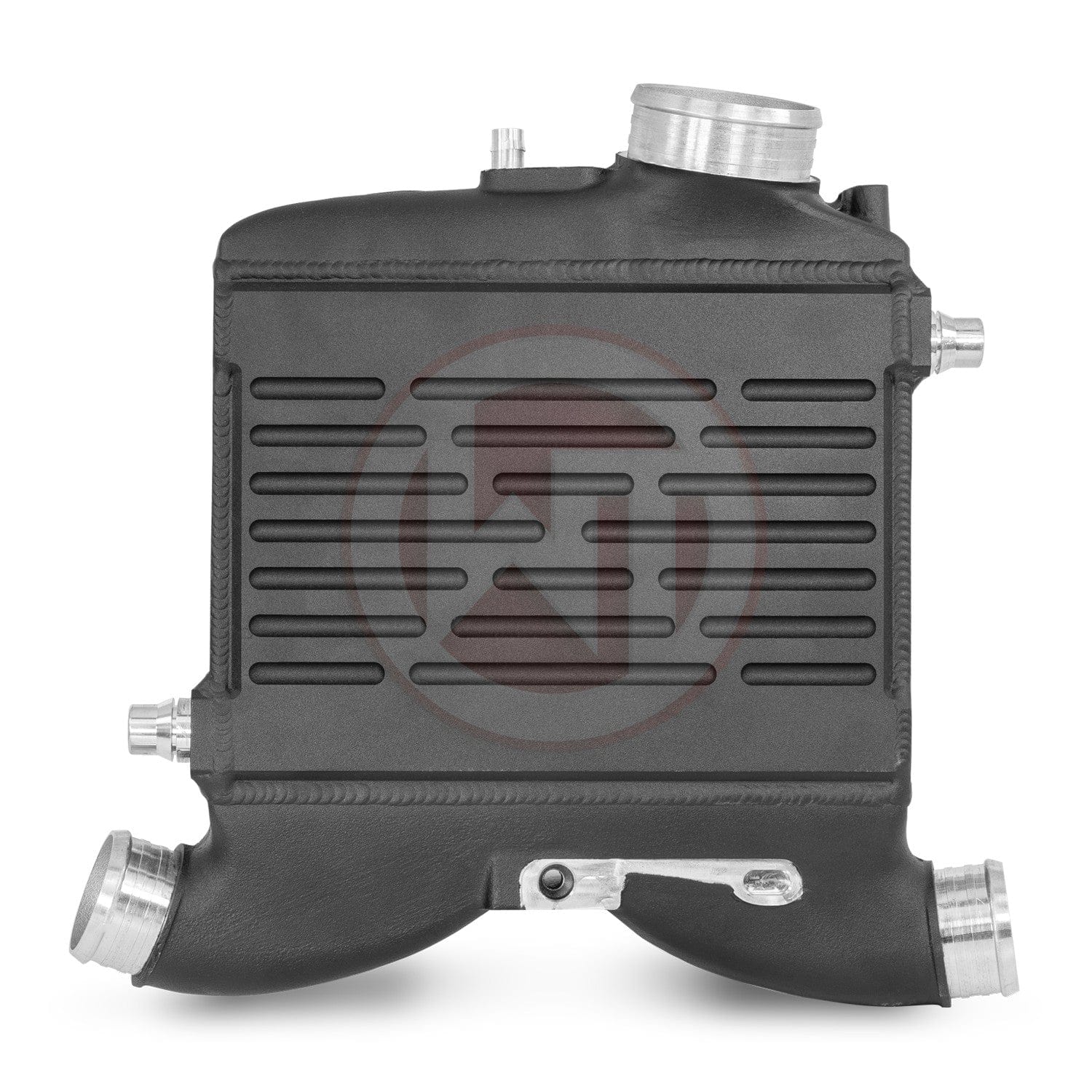

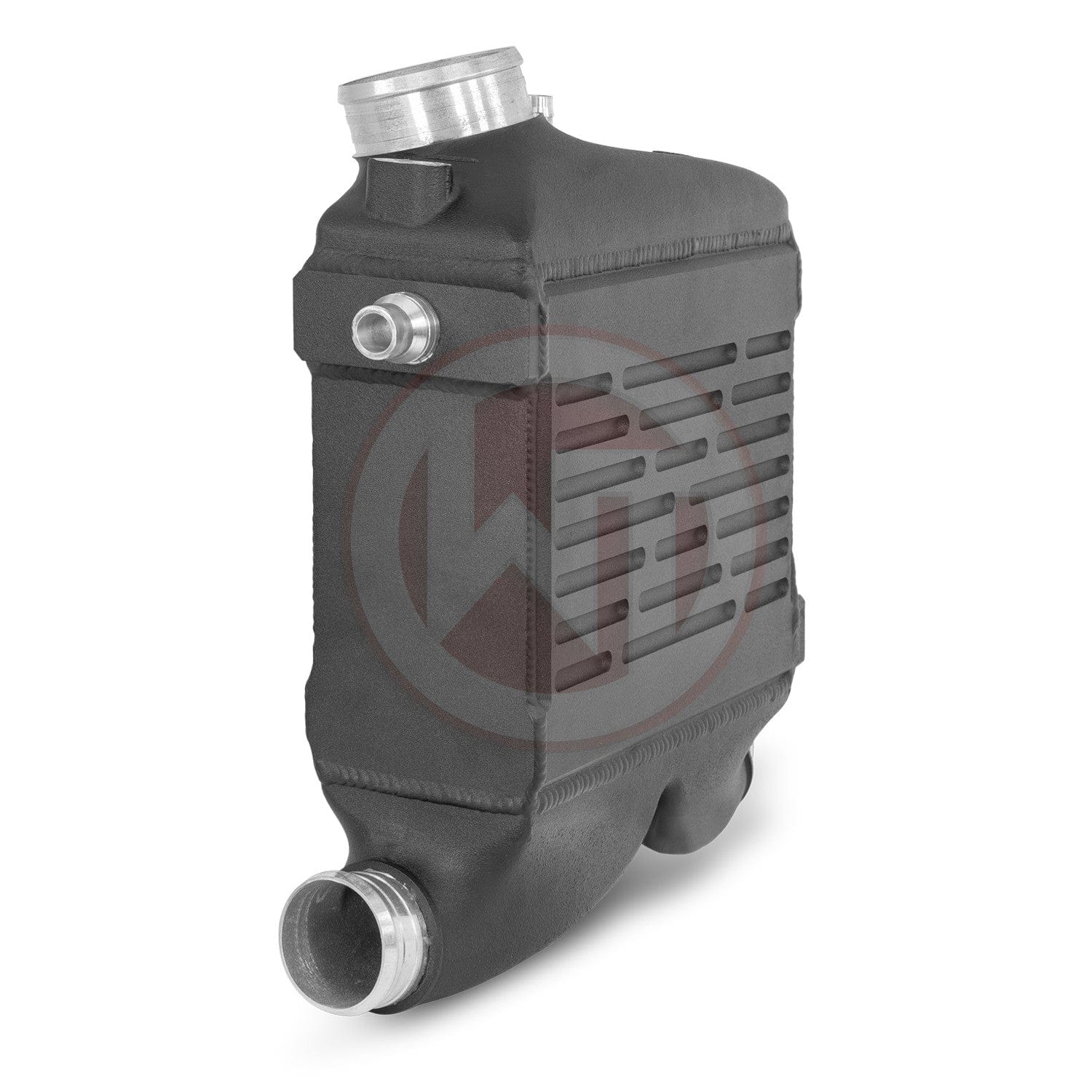

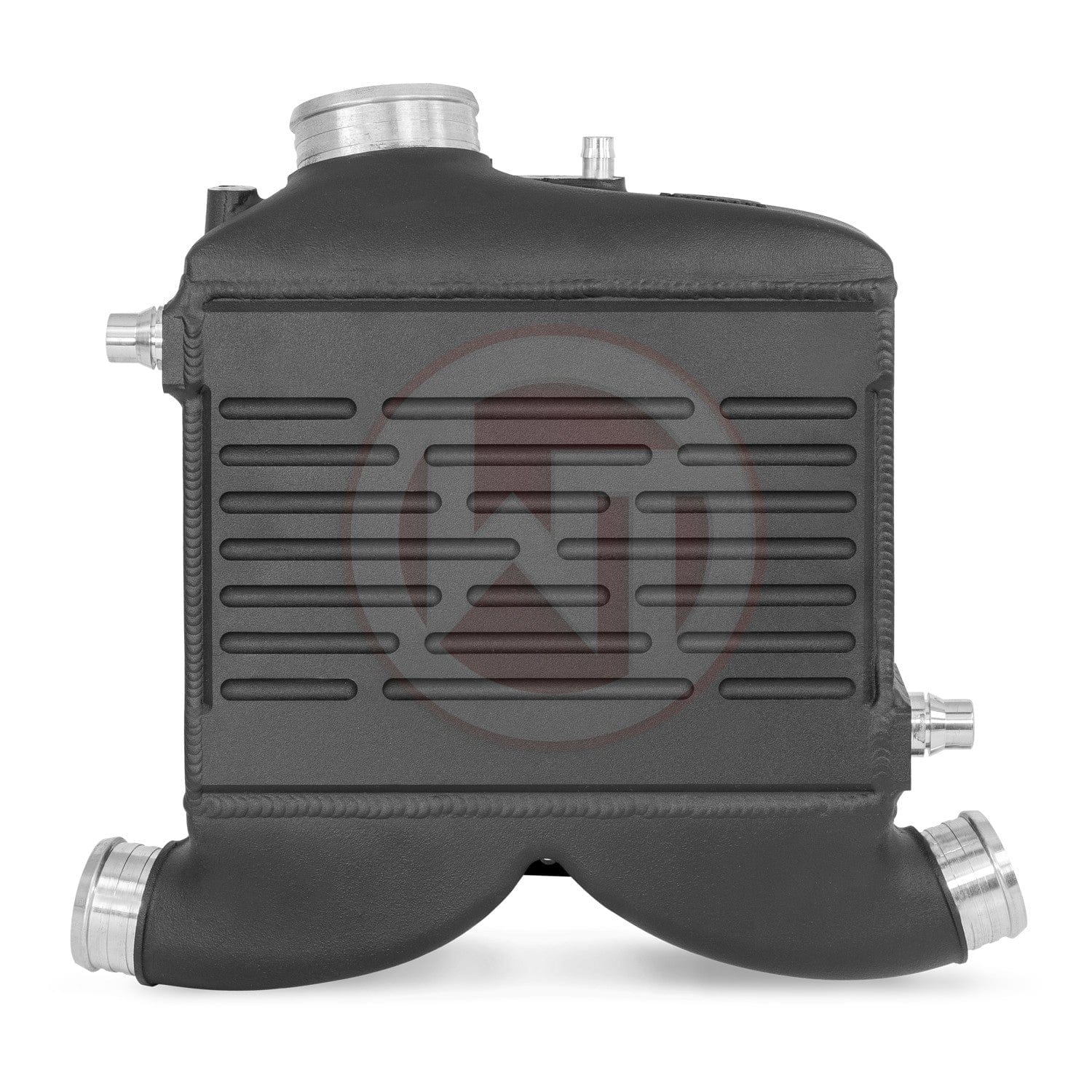

The WAGNERTUNING high-performance intercooler has got a new performance core with the external core dimensions 222 mm x 297 mm x 95 mm / 8,74Inch x 11,7Inch x 3,74Inch. This intercooler core was directly developed for the high requirements of the C43 MAG engine and offers 133 % more external core volume compared to the stock intercooler. The calculated ratio between the inner and outer cooling surface generates a maximum heat transfer and at the same time the best possible internal air flow. The aluminium cast endtanks were designed in CAD and optimised in CFD simulations. The result is an excellent cooling property with a minimal back pressure. That`s why this kit is also perfect for racing use. An optimal cooling effect of the charged air with a significant increase in performance!

All WAGNERTUNING radiators are equipped with a heat-conductive anti corrosion coating to ensure a lasting cooling effect. The plug & play installation of the system is simple and easy to perform (an installation instruction is included as well).

• significantly better cooling performance
• less pressure drop
• more power and torque for your engine
• mechanical discharge of the turbocharger
• 100% pressure resistance
• 100% Plug and Play
• up to 4 years warranty
• including Ø75mm (2,25 Inch) boost-pipe
• optionally with 2pcs 1/8NPT WMI-ports inside the upper endtank


Dimensions

• core dimensions stock intercooler:
• 200 mm x 207 mm x 65 mm
• V = 2,7 Liter

• core dimensions WT intercooler:
• 222 mm x 297 mm x 95 mm
• V = 6,3 Liter (+133%)

• Mercedes Benz W205 C43 AMG (M276 DE30AL)

Dyno Graphs

200001157.NOWMI

Manufactured by

Wagner

Warranty

ML Performance Lifetime Warranty
